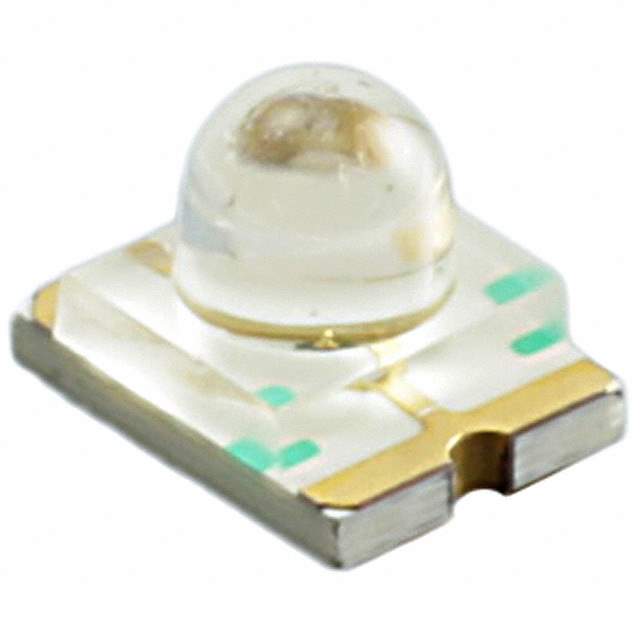

ASMT-BG20-AS000 Real Image
Same model may have multiple batches, images only for reference.

ASMT-BG20-AS000

Part No ASMT-BG20-AS000
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED GREEN CLEAR SMD / Green 569nm LED Indication - Discrete 2V 1209 (3224 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 650mcd
Lens Style Round with Domed Top
Lens Size 1.80mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 15°
Mounting SMD (SMT)
Wavelength - Dominant 569nm
Wavelength - Peak 565nm
Package / Case 1209 (3224 Metric)
Dimension 3.20mm L x 2.40mm W
Height (Max) 2.40mm
Base Product Number ASMT-BG20
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names ASMTBG20AS000,516-2673-2,516-2673-6,ASMT-BG20-AS000-ND,516-2673-1
Standard Package 1,500
Win Source Part Number 967059-ASMT-BG20-AS000
Ultra Librarian 3D Model Ultra Librarian ASMT-BG20-AS000 CAD Model

Description

The Broadcom Limited ASMT-BG20-AS000 is a green LED indication product that is designed for use in various electronic applications.

  • Viewing Angle: 15 degrees
  • Millicandela Rating: 650mcd
  • Voltage: 2V
  • Current: 20mA
  • Package: Tape and reel
  • Standard Package: 1,500
  • REACH: Unaffected
  • ECCN: EAR99
