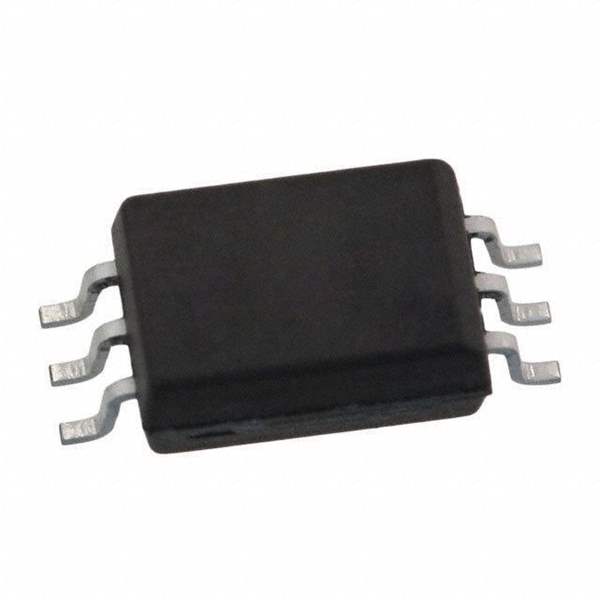

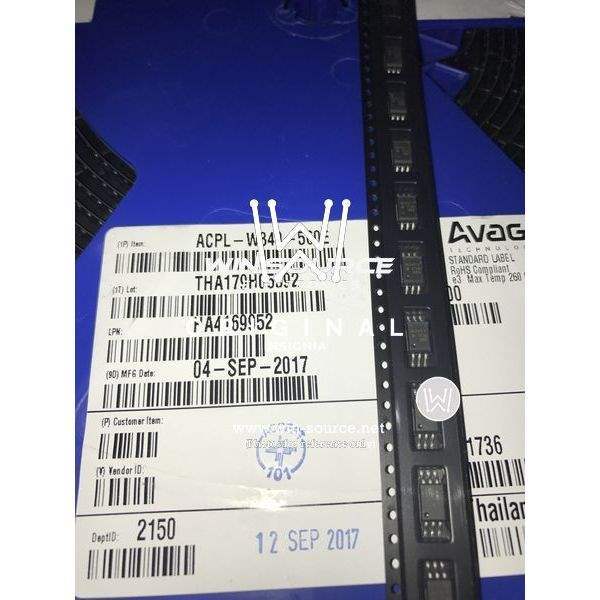

ACPL-W340-560E Broadcom Limited ACPL-W340-560E Real Image ACPL-W340-560E real image
Same model may have multiple batches, images only for reference.
ACPL-W340-560E Broadcom Limited ACPL-W340-560E Real Image ACPL-W340-560E real image
ACPL-W340-560E Broadcom Limited ACPL-W340-560E Real Image ACPL-W340-560E real image
Same model may have multiple batches, images only for reference.

ACPL-W340-560E

Part No ACPL-W340-560E
Manufacturer Broadcom Limited
Catalog Isolators - Gate Drivers
Description Optocoupler Drive 1-CH 30V 1500V 6-Pin SO T/R / 1.0 Amp Output Current IGBT Gate Drive Optocoupler with Rail-to-Rail Output Voltage in Stretched SO6 | OPTOISO 5KV 1CH GATE DRIVER 6SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tape and Reel
Technology Optical Coupling
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 35kV/μs
Propagation Delay tpLH / tpHL (Maximum) 200ns, 200ns
Pulse Width Distortion (Maximum) 70ns
Rise / Fall Time 43ns, 40ns
Current - Output High, Low 800mA, 800mA
Current - Peak Output 1A
Voltage - Forward (Vf) 1.55V
Current - DC Forward (If) (Maximum) 25mA
Voltage - Output Supply 15V ~ 30V
Temperature Range - Operating -40°C ~ 105°C
Mounting Style SMD
Manufacturer Package 6-SOIC (0.268", 6.80mm Width)
Supplier Device Package 6-SO Stretched
Approvals CSA, IEC/EN/DIN, UR
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1135440-ACPL-W340-560E
Manufacturer Homepage www.avagotech.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name ACPL-W340
Introduction Date June 01, 2011
ECCN EAR99
Country of Origin Philippines, Singapore, Thailand
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian ACPL-W340-560E CAD Model

Description

The ACPL-W340-560E is an optical coupling isolator from Broadcom Limited that is designed for use in a variety of applications, including industrial control, power supplies, and motor control.

  • Package: 6-SO Stretched
  • Current Output High: 800mA
  • Current Output Low: 800mA
  • Voltage Isolation: 5000Vrms
  • Current Peak Output: 1A
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • Manufacturer Pack Quantity: 1000
