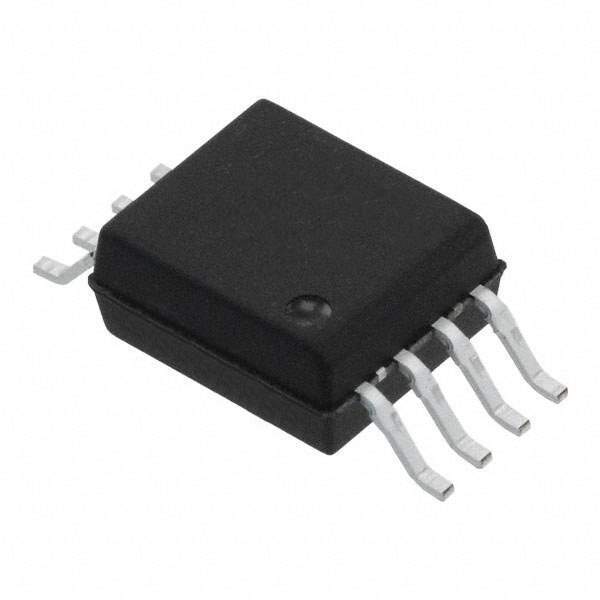

The ACPL-K49T-000E is an optoisolator with transistor output from Broadcom Limited.

• This device: comes in an 8-SOIC (0.268", 6.81mm Width) package and has a minimum current transfer ratio of 32% @ 10mA.
• The voltage isolation of this optoisolator: is 5000Vrms, and it has a maximum output voltage of 20V.
• The device: has a turn-on/turn-off time of 20µs, 20µs (Max) and is suitable for use in DC input applications.
• The device: has a forward current of 20mA and a forward voltage of 1.5V (Typ).
• The current output/channel: is 8mA, and it has one channel.
• This optoisolator: is an alternative to IL217AT, IL213AT, IL206AT, TLP701A(F), and TLP701(F).
• The device: has an operating temperature range of -40°C to 125°C and is suitable for use in various applications.
