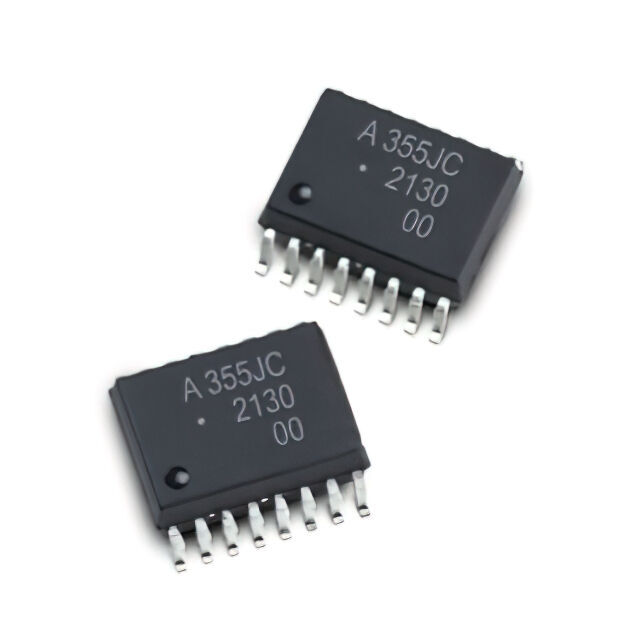

ACPL-355JC-500E Broadcom Limited – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACPL-355JC-500E

Part No ACPL-355JC-500E
Manufacturer Broadcom Limited
Catalog PMIC - Gate Drivers
Description IC GATE DRVR HI/LOW SIDE 16SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)Power Management (PMIC)Gate Drivers
Manufacturer Broadcom Limited
Part Status Active
Driven Configuration High-Side or Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, SiC MOSFET
Voltage - Supply 4.5V ~ 5.5V, 15V ~ 30V
Current - Peak Output (Source, Sink) 10A, 10A
Input Type Non-Inverting
Rise / Fall Time (Typ) 500ns, 33ns
Operating Temperature -40°C ~ 110°C (TA)
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Base Product Number ACPL-355JC
