Same model may have multiple batches, images only for reference.

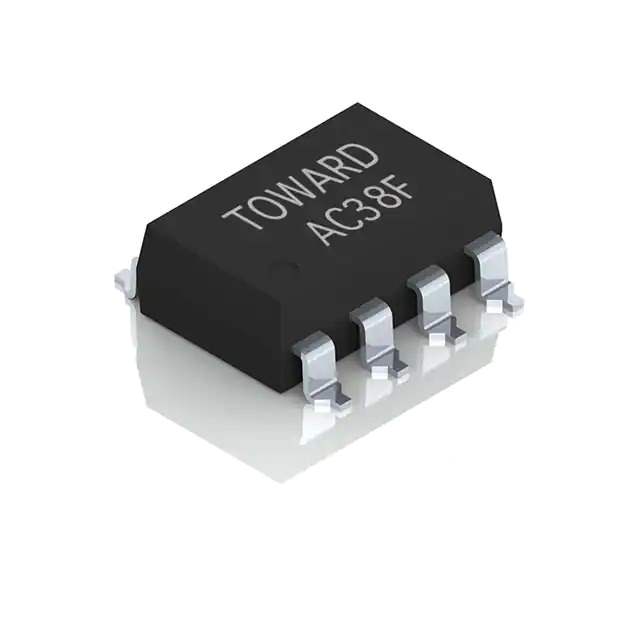

AC38F Real Image
Same model may have multiple batches, images only for reference.

AC38F

Part No AC38F
Manufacturer Bright Toward Industrial Co., Ltd.
Catalog Solid State Relays
Description SSR RELAY DPST-NO 70MA 0-600V
Datasheet
AC38F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Bright Toward Industrial Co., Ltd.
Series 38
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit DPST-NO (2 Form A)
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 600 V
Load Current 70 mA
On-State Resistance (Max) 60 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm)
Supplier Device Package 8-SMD
Standard Package 45 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 859221-AC38F
Ultra Librarian 3D Model Ultra Librarian AC38F CAD Model

Description

The 859221-AC38F is a solid state relay manufactured by Bright Toward Industrial Co., Ltd.

  • Series: 38
  • Termination Style: Gull Wing
  • Package: Tube
  • Standard Package Size: 45 pcs
  • Input Voltage: 1.17VDC
  • Output Type: AC and DC
  • Circuit Configuration: DPST-NO (2 Form A)
  • Maximum On-State Resistance: 60 Ohms
  • Load Current: 70 mA
  • Voltage Load Range: 0 V to 600 V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SMD
  • ECCN: EAR99
  • REACH Regulations: Not affected
