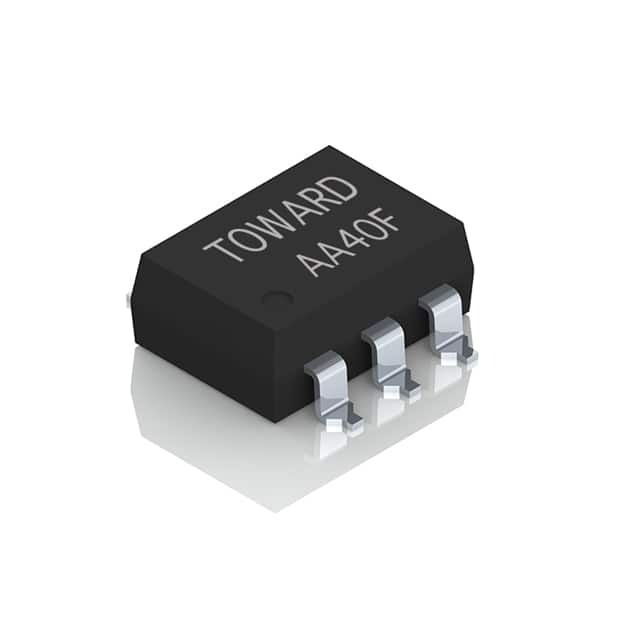

AA40F
Same model may have multiple batches, images only for reference.

AA40F

Part No AA40F
Manufacturer Bright Toward Industrial Co., Ltd.
Catalog Solid State Relays
Description SSR RELAY SPST-NO 45MA 0-1500V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Datasheet
AA40F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Bright Toward Industrial Co., Ltd.
Series 40
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.17VDC
Voltage - Load 0 V ~ 1500 V
Load Current 45 mA
On-State Resistance (Max) 300 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 859128-AA40F
Ultra Librarian 3D Model Ultra Librarian AA40F CAD Model

Description

The 859128-AA40F is a solid-state relay from Bright Toward Industrial Co., Ltd.

  • Series: 40
  • Package Type: Tube
  • Termination Style: Gull-Wing
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 45 mA
  • Voltage Load: 0V to 1500V
  • Package: 6-SMD (0.300", 7.62mm)
  • Mounting Type: Surface-Mount
  • Status: Active
  • Standard Package: 50 pcs
