Same model may have multiple batches, images only for reference.

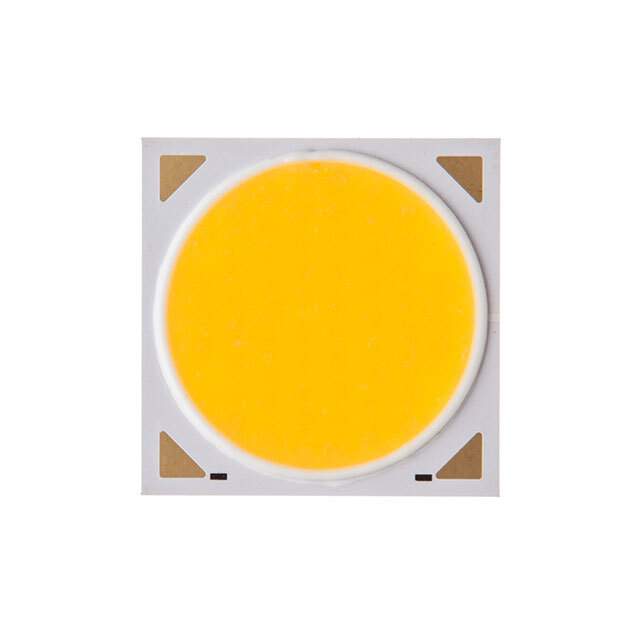

BXRE-35E4000-F-23 Real Image
Same model may have multiple batches, images only for reference.

BXRE-35E4000-F-23

Part No BXRE-35E4000-F-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 4000LM WARM WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Datasheet
BXRE-35E4000-F-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V18 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3500K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 4289lm (Typ)
Current - Test 1.05A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 29.5V
Lumens/Watt @ Current - Test 138 lm/W
Current - Max 2.1A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 21.00mm L x 21.00mm W
Height 1.70mm
Light Emitting Surface (LES) 18.60mm Dia
Lens Type Flat
Base Product Number BXRE-35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Standard Package 600
Win Source Part Number 1175450-BXRE-35E4000-F-23
Ultra Librarian 3D Model Ultra Librarian BXRE-35E4000-F-23 CAD Model

Description

The Bridgelux V18 Array is a Chip On Board (COB) type LED lighting component.

  • Configuration: Square
  • Viewing Angle: 120°
  • Voltage Forward (Vf): 29.5V
  • Maximum Current: 2.1A
  • Light: White and warm
  • CCT: 3500K 3-Step MacAdam Ellipse
  • CRI: 80
  • Lumens/Watt @ Current-Test: 138 lm/W
  • Light Emitting Surface (LES): 18.60mm diameter
  • Dimension: 21.00mm L x 21.00mm W x 1.70mm H
  • Package: Tray
  • Standard Package: 600
  • Status: Obsolete
  • Luminous Flux (Typ): 4289lm
