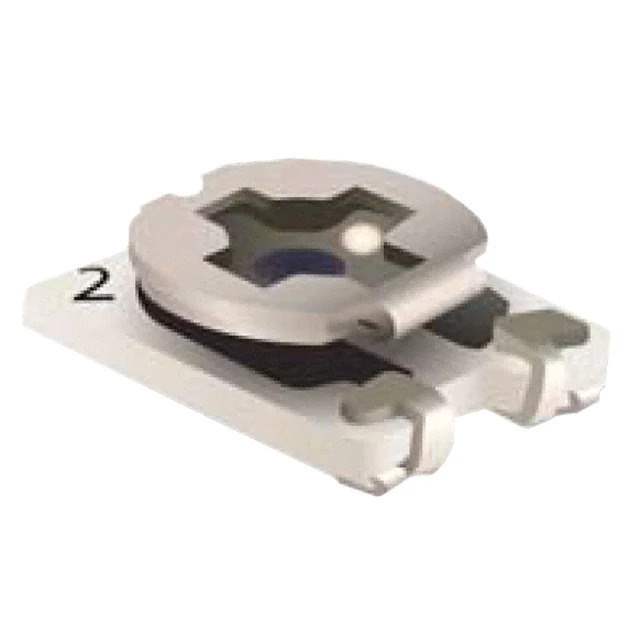

Same model may have multiple batches, images only for reference.

TC42X-2-105E

Name: TC42X-2-105E
Brand: Bourns Inc.
SKU: 936154
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TC42X-2-105E
Manufacturer	Bourns Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 1M OHM 0.1W J LEAD TOP / 1 MOhms 0.1W, 1/10W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Datasheet	TC42X-2-105E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® TC42 - Open Frame
Package	Tape & Reel
Product Status	Active
Resistance	1 mOhms
Power (Watts)	0.1W, 1/10W
Tolerance	±25%
Temperature Coefficient	±250ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Surface Mount
Termination Style	J Lead
Size / Dimension	Rectangular - 0.102" x 0.087" Face (2.60mm x 2.20mm)
Base Product Number	TC42X
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.31.0000
California Prop 65	Warning Information
Win Source Part Number	936154-TC42X-2-105E
Ultra Librarian 3D Model	Ultra Librarian TC42X-2-105E CAD Model

Alternative Products

Description

The 936154-TC42X-2-105E is a potentiometer from Bourns Inc.

Series: Trimpot® TC42 - Open Frame
Resistance: 1 mOhms
Tolerance: ±25%
Mounting Type: Surface Mount
Package: Tape and Reel
Size / Dimension: Rectangular, 0.102" x 0.087" (2.60mm x 2.20mm)
Number of Turns: 1
Resistive Material: Cermet
Termination Style: J Lead
Adjustment Type: Top Adjustment
Power Rating: 0.1W or 1/10W
Temperature Coefficient: ±250ppm/°C
Status: Active
California Prop 65: Compliant
