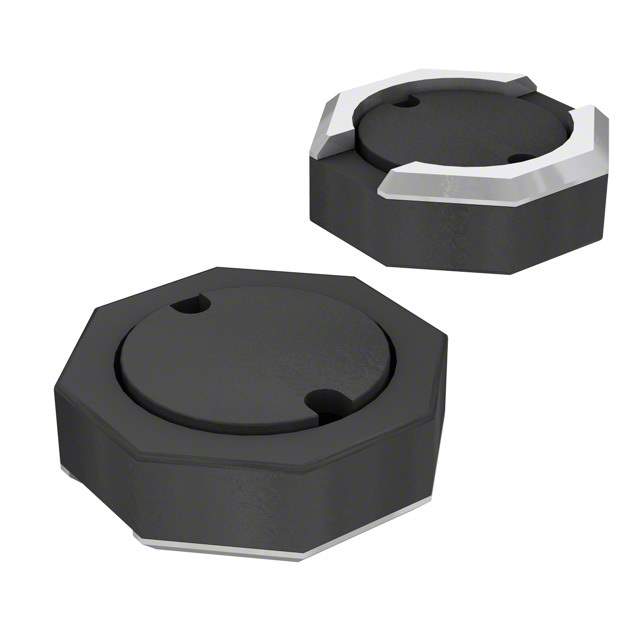

SRU2009-220Y Real Image
Same model may have multiple batches, images only for reference.

SRU2009-220Y

Part No SRU2009-220Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded SMD Power Inductors
Datasheet
SRU2009-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRU2009
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±30%
Current Rating 220mA
Current - Saturation 220mA
Shielding Shielded
DC Resistance (DCR) 2.6 Ohm Max
Q @ Freq 10 @ 2.52MHz
Frequency - Self Resonant 30MHz
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 1258868-SRU2009-220Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Family Name SRU2009
Introduction Date March 23, 2007
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian SRU2009-220Y CAD Model

Description

The SRU2009-220Y is a surface mount wirewound inductor from Bourns Inc.

  • Popularity: medium
  • Supply and Demand Status: balanced
  • Recommended Use: electronic circuits that require inductance
  • RoHS Compliant: yes
  • Operating Temperature Range: -40°C to 125°C
  • Shielding: shielded
  • Core Material: ferrite
  • Maximum DC Resistance: 2.6 Ohm
  • Current Saturation: 220mA
  • Q: 10 @ 2.52MHz
  • Frequency Self-Resonant: 30MHz
