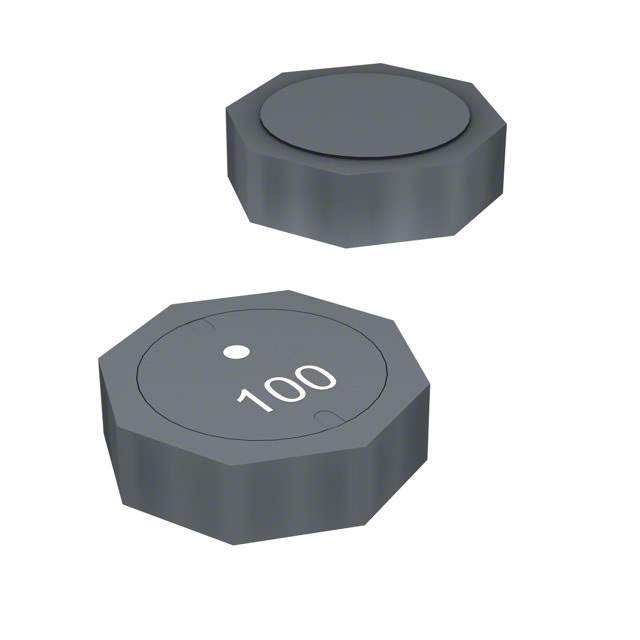

Same model may have multiple batches, images only for reference.

SRU1028-3R3Y

Name: SRU1028-3R3Y
Brand: Bourns Inc.
SKU: 1123664
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU1028-3R3Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 4.6A 15 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 4.6 A 15mOhm Nonstandard
Datasheet	SRU1028-3R3Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU1028
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.3 µH
Tolerance	±30%
Current Rating (Amps)	4.6 A
Current - Saturation (Isat)	4.3A
Shielding	Shielded
DC Resistance (DCR)	15mOhm
Q @ Freq	14 @ 7.96MHz
Frequency - Self Resonant	55MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Base Product Number	SRU1028
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRU1028-3R3Y-ND,SRU1028-3R3YTR,SRU10283R3Y,SRU1028-3R3YCT,SRU1028-3R3YDKR
Standard Package	1,000
Win Source Part Number	1123664-SRU1028-3R3Y
Ultra Librarian 3D Model	Ultra Librarian SRU1028-3R3Y CAD Model

Alternative Products

Description

The SRU1028-3R3Y is an inductor component manufactured by Bourns Inc.

Type: Drum Core, Wirewound
Shielding: Yes
Standard Package: 1,000
Mounting Type: SMD (SMT)
Inductance: 3.3 µH
Tolerance: ±30%
Frequency Self-Resonant: 55MHz
Q @ Freq: 14 @ 7.96MHz
