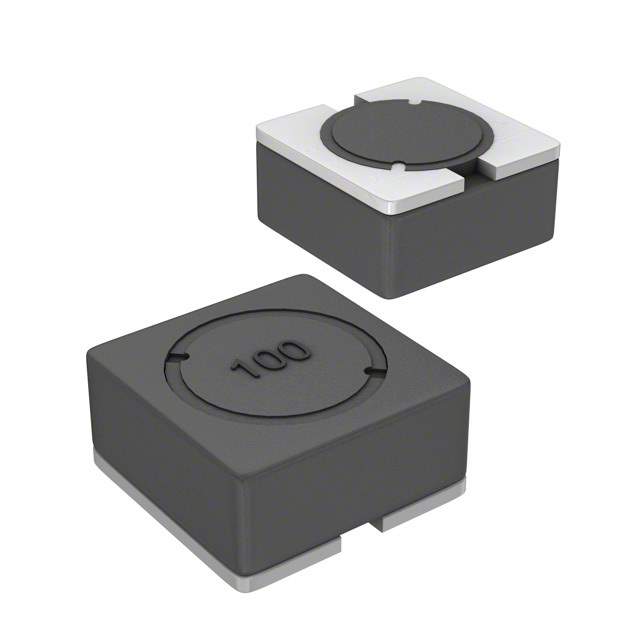

Same model may have multiple batches, images only for reference.

SRR5028-150Y

Name: SRR5028-150Y
Brand: Bourns Inc.
SKU: 990600
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR5028-150Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 15UH 1.37A 100MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 1.37 A 100mOhm Max Nonstandard
Datasheet	SRR5028-150Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR5028
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	1.37 A
Current - Saturation (Isat)	1.15A
Shielding	Shielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	9 @ 2.52MHz
Frequency - Self Resonant	22MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Base Product Number	SRR5028
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRR5028-150YTR-ND,SRR5028-150YCT-ND,118-SRR5028-150YDKR,SRR5028-150YCT,-SRR5028-150YCT,118-SRR5028-150YCT,-SRR5028-150Y,-SRR5028-150Y-ND,SRR5028-150YTR,118-SRR5028-150YTR,SRR5028-150Y-ND,SRR5028150Y,-SRR5028-150YTR
Standard Package	400
Win Source Part Number	990600-SRR5028-150Y
Ultra Librarian 3D Model	Ultra Librarian SRR5028-150Y CAD Model

Alternative Products

Description

The Bourns Inc. SRR5028 series fixed inductor is a drum core, wirewound inductor with a shielding feature.

Type: Fixed Inductor
Core: Drum Core
Winding: Wirewound
Shielding: Yes
Inductance: 15 µH
Tolerance: ±30%
Package: Tape and Reel
Standard Package: 400
Height: 0.118" (3.00mm)
Dimensions: 0.228" L x 0.228" W (5.80mm x 5.80mm)
DC Resistance (DCR): 100mOhm Max
Current Rating: 1.37 A
Operating Temperature: -40°C to 125°C
ECCN: EAR99
HTSUS: 8504.50.4000
