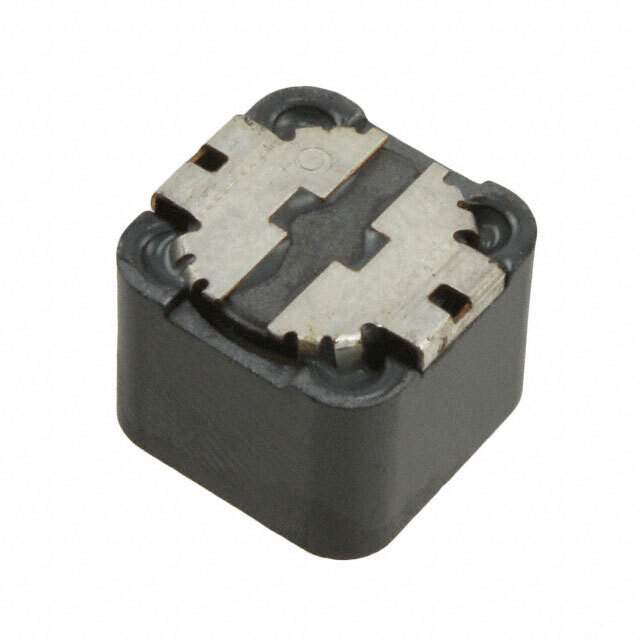

The Bourns SRR1210-100M is a 10 µH shielded drum core, wirewound inductor with a current rating of 6.5 A and a maximum DC resistance of 18 mΩ. It is a surface mount device (SMD) with a 1210 package size. The SRR1210-100M is ideal for a wide range of applications, including power supplies, DC-DC converters, and motor controllers.

Features and Benefits

• Shielded drum core construction for low EMI
• High current rating (6.5 A)
• Low DC resistance (18 mΩ)
• SMD package for ease of assembly
• Wide operating temperature range (-55°C to +125°C)

Applications

• Power supplies
• DC-DC converters
• Motor controllers
• Automotive electronics
• Industrial electronics
• Telecommunications equipment

Technical Specifications

• Inductance: 10 µH
• Current rating: 6.5 A
• DC resistance: 18 mΩ (max)
• Core type: Shielded drum core
• Package size: 1210 (3.2 mm x 2.5 mm)
• Operating temperature range: -55°C to +125°C

Benefits of Using the SRR1210-100M

The Bourns SRR1210-100M offers a number of benefits over other types of inductors, including:

• Low EMI: The shielded drum core construction of the SRR1210-100M helps to reduce EMI emissions, making it ideal for use in noise-sensitive applications.
• High current rating: The SRR1210-100M has a current rating of 6.5 A, making it capable of handling high currents without saturating.
• Low DC resistance: The SRR1210-100M has a low DC resistance of 18 mΩ, which helps to minimize power losses.
• SMD package: The SRR1210-100M is available in an SMD package, which makes it easy to assemble and solder.
• Wide operating temperature range: The SRR1210-100M has a wide operating temperature range of -55°C to +125°C, making it suitable for use in a variety of environments.

Conclusion

The Bourns SRR1210-100M is a high-performance, shielded drum core, wirewound inductor that is ideal for a wide range of applications. It offers a number of benefits, including low EMI, high current rating, low DC resistance, SMD package, and wide operating temperature range.
