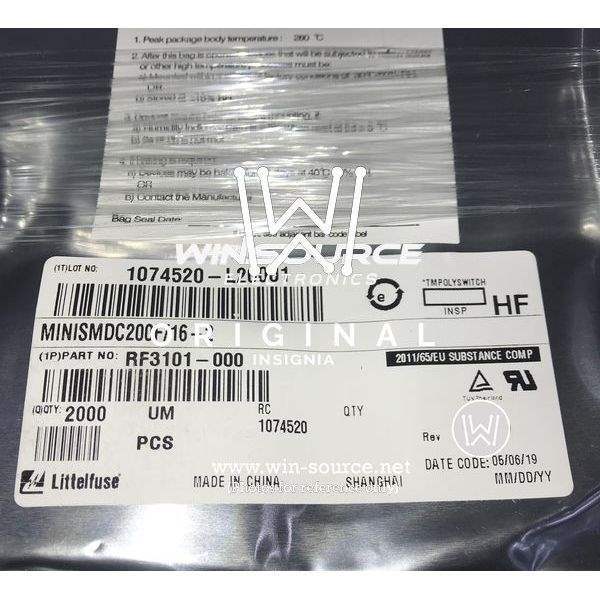

Same model may have multiple batches, images only for reference.

MINISMDC200F/16-2

Name: MINISMDC200F/16-2
Brand: Littelfuse Inc.
SKU: 804661
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MINISMDC200F/16-2
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	MINISMDC200F/16-2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Littelfuse Inc.
Packaging	Reel
Type	Polymeric
Voltage - Max	16V
Current - Max	40A
Current - Hold (Ih) (Maximum)	2A
Current - Trip (It)	4A
Time to Trip	5s
Resistance - Initial (Ri) (Min)	20 mOhms
Resistance - Post Trip (R1) (Maximum)	85 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	SMD
Manufacturer Package	1812 (4532 Metric), Concave
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Maximum)	0.048" (1.22mm)
Approvals	CSA, TUV, UL
Manufacturer Pack Quantity	2,000
MSL Level	2A (4 Weeks)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804661-MINISMDC200F/16-2
Ultra Librarian 3D Model	Ultra Librarian MINISMDC200F/16-2 CAD Model

Alternative Products

Description

The Littelfuse Inc. MINISMDC200F/16-2 is a polymeric type electronic component that is used in various applications.

Mounting: Surface Mount
Approvals: CSA, TUV, UL
Maximum Voltage: 16V
Maximum Current: 40A
Current Trip: 4A
Time to Trip: 5s
Temperature Range: -40°C to 85°C
Dimension: 0.179" L x 0.128" W (4.55mm x 3.24mm)
Initial Resistance: 20 mOhms
Post-Trip Resistance: 85 mOhms
