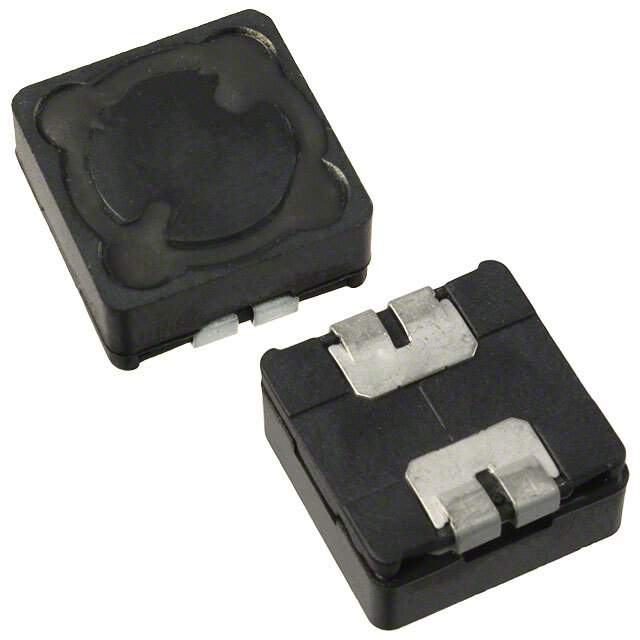

SRR1206-220ML Real Image
Same model may have multiple batches, images only for reference.

SRR1206-220ML

Part No SRR1206-220ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.3A 62 MOHM SMD / Shielded High Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating (Amps) 2.3A
Current - Saturation 3.8A
Shielding Shielded
DC Resistance (DCR) 62mOhm Max
Q at Freq 21 at 2.52MHz
Frequency - Self Resonant 11MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height - Seated (Maximum) 0.256" (6.50mm)
Part Number Series SRR1206
Manufacturer Pack Quantity 600
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808102-SRR1206-220ML
Ultra Librarian 3D Model Ultra Librarian SRR1206-220ML CAD Model

Description

The Bourns Inc. SRR1206-220ML is a wirewound inductor with a shielded design.

  • Inductance: 22μH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Maximum DC Resistance: 62mOhm
  • Mounting Style: SMD
  • Package: Nonstandard
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Maximum Height: 0.256" (6.50mm)
  • Current Saturation: 3.8A
  • Self-Resonant Frequency: 11MHz
  • Q @ Freq: 21 @ 2.52MHz
  • Current Rating: 2.3A
  • Part Number Series: SRR1206
