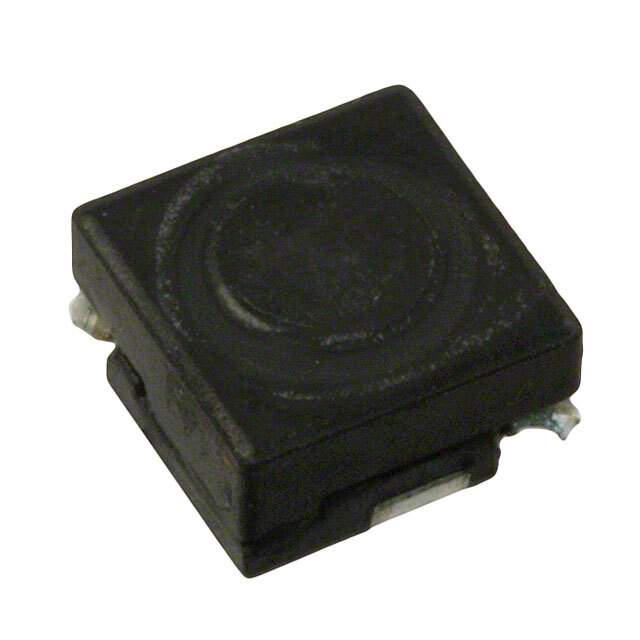

SRR0603-4R7ML Real Image
Same model may have multiple batches, images only for reference.

SRR0603-4R7ML

Part No SRR0603-4R7ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 1.6A 70 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 1.6 A 70mOhm Max Nonstandard, Corner Terminals
Datasheet
SRR0603-4R7ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0603
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.6 A
Current - Saturation (Isat) 2.2A
Shielding Shielded
DC Resistance (DCR) 70mOhm Max
Q @ Freq 13 @ 7.96MHz
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.130" (3.30mm)
Base Product Number SRR0603
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRR0603-4R7MLCT,SRR0603-4R7ML-ND,SRR06034R7ML,SRR0603-4R7MLDKR,SRR0603-4R7MLTR
Standard Package 1,000
Win Source Part Number 1095966-SRR0603-4R7ML
Ultra Librarian 3D Model Ultra Librarian SRR0603-4R7ML CAD Model

Description

The Bourns Inc. SRR0603 series fixed inductor is a high-quality component that is perfect for use in a variety of applications.

  • Shielded: Shielded
  • Type: Drum core, wirewound
  • Package/Case: Non-standard, corner terminals
  • This inductor is ideal for use in applications that require high inductance and low resistance.
  • Model: SRR0603-4R7ML
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Mounting: SMD (SMT)
  • Package: Tape & Reel
