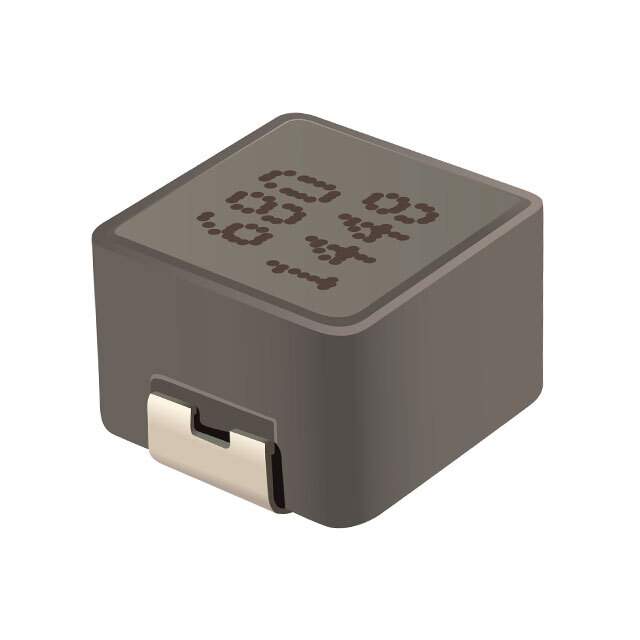

Same model may have multiple batches, images only for reference.

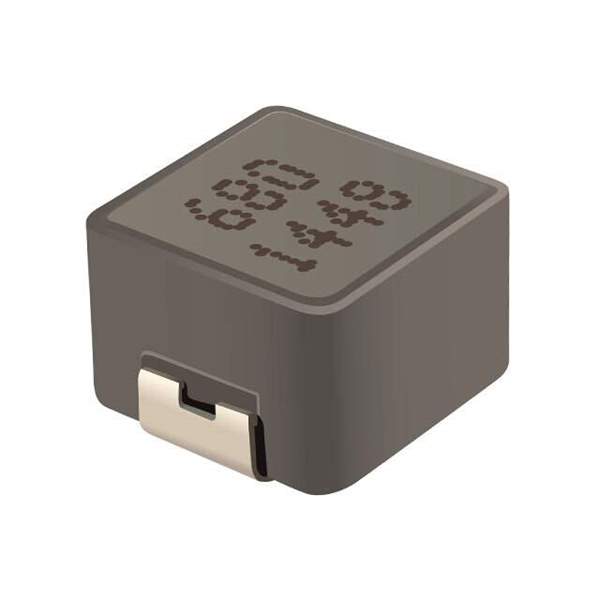

SRP7050TA-220M Real Image
Same model may have multiple batches, images only for reference.

SRP7050TA-220M

Part No SRP7050TA-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.5A 170 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2.5 A 170mOhm Max Nonstandard
Datasheet
SRP7050TA-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7050TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 2.5 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 170mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 9MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP7050TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP7050TA-220MCT,SRP7050TA-220MDKR,SRP7050TA-220MTR
Standard Package 800
Win Source Part Number 981952-SRP7050TA-220M
Ultra Librarian 3D Model Ultra Librarian SRP7050TA-220M CAD Model

Description

The Bourns Inc. SRP7050TA-220M is a drum core, wirewound inductor that is shielded. Bourns Inc. manufactures it.

  • Inductance: 22 µH
  • Height: 0.197" (5.00mm)
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Q @ Freq: 15 @ 100kHz
  • Frequency Self-Resonant: 9MHz
  • DC Resistance: 170mOhm Max
  • Operating Temperature: -40°C ~ 150°C
  • Dimension: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • AEC-Q200: Yes
  • Current Rating: 2.5 A
  • Inductance Frequency-Test: 100 kHz
