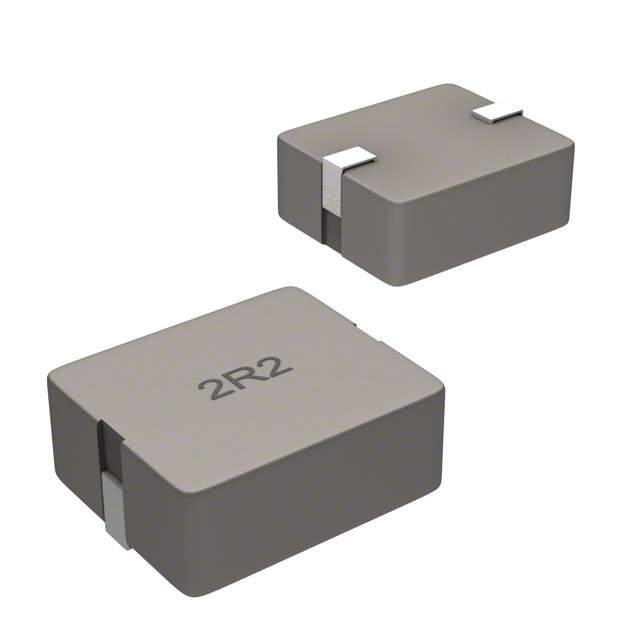

SRP7030-R20FM Real Image
Same model may have multiple batches, images only for reference.

SRP7030-R20FM

Part No SRP7030-R20FM
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 200NH 23A 2.4 MOHM SMD / Shielded Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Part Status Obsolete (End Of Life)
Type Molded
Material - Core Iron
Inductance 200nH
Tolerance ±20%
Current Rating (Amps) 23A
Current - Saturation 34A
Shielding Shielded
DC Resistance (DCR) 2.4mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.299" L x 0.256" W (7.60mm x 6.50mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Part Number Series SRP7030
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808536-SRP7030-R20FM
Ultra Librarian 3D Model Ultra Librarian SRP7030-R20FM CAD Model

Description

The Bourns Inc. 808536-SRP7030-R20FM is a shielded molded inductor with an inductance of 200nH and a tolerance of ±20%.

  • Inductance: 200nH
  • Tolerance: ±20%
  • Current Rating (Amps): 23A
  • DC Resistance (DCR): 2.4mOhm Max
  • Material-Core: Iron
  • Dimensions: 0.299" L x 0.256" W (7.60mm x 6.50mm)
  • Height-Seated (maximum): 0.118" (3.00mm)
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (unlimited)
  • Inductance Frequency-Test: 100kHz
