Same model may have multiple batches, images only for reference.

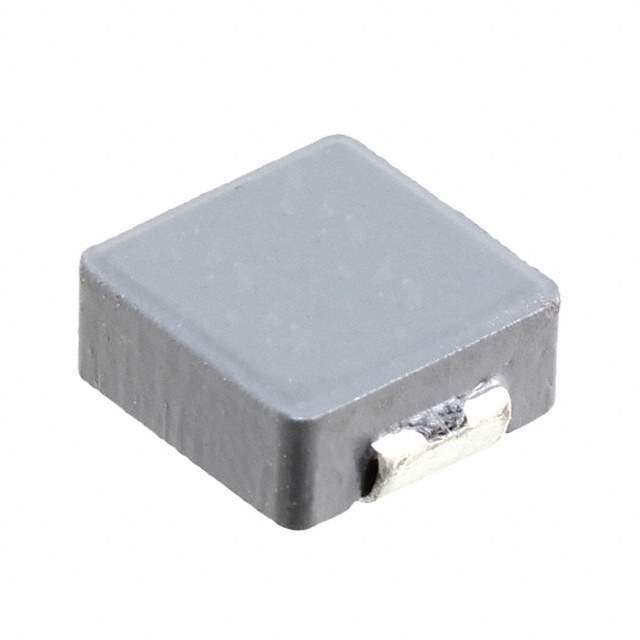

SRP7028A-150M Real Image
Same model may have multiple batches, images only for reference.

SRP7028A-150M

Part No SRP7028A-150M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15UH 3A 123 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 3 A 123mOhm Max Nonstandard
Datasheet
SRP7028A-150M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7028A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 3 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 123mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number SRP7028A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 118-SRP7028A-150MTR,SRP7028A-150M-ND,118-SRP7028A-150MDKR,118-SRP7028A-150MCT
Standard Package 1,000
Win Source Part Number 1134260-SRP7028A-150M
Ultra Librarian 3D Model Ultra Librarian SRP7028A-150M CAD Model

Description

The SRP7028A-150M is a drum core, wirewound shielded inductor with an inductance of 15 microhenries and a tolerance of ±20%.

  • Type: Drum core, wirewound, shielded inductor
  • Inductance: 15 microhenries
  • Tolerance: ±20%
  • Seated Height (Max): 0.118 inches
  • DC Resistance: 123 milliohms
  • AEC-Q200 Rated: Yes
  • Core Material: Carbonyl powder
  • Self-Resonant Frequency: 12MHz
  • Q: 20 @ 100kHz
  • Package/Case: Nonstandard
  • Packaging: Tape and reel
  • Current Rating: 3 amps
  • Saturation Current: 4 amps
  • Operating Temperature: -40°C to 150°C
  • Alternative Part: SRP7028A150M
