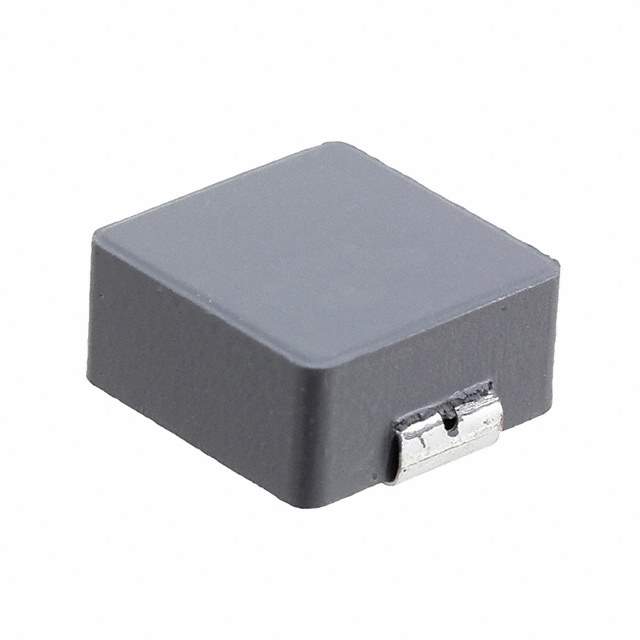

Same model may have multiple batches, images only for reference.

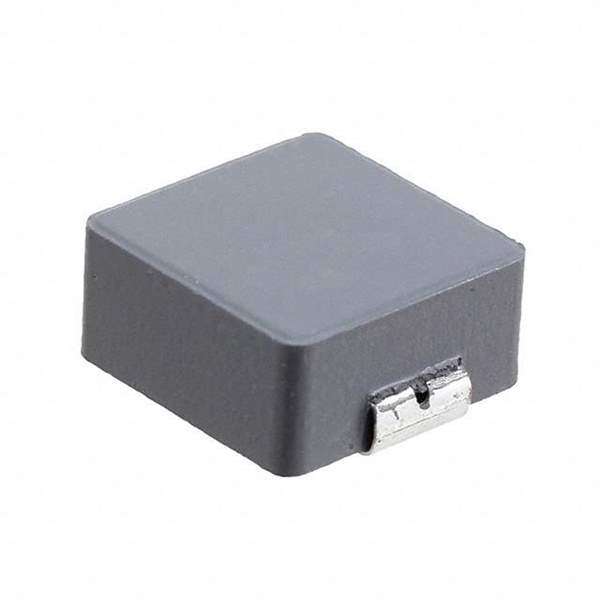

SRP1265A-220M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-220M

Part No SRP1265A-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 9A 37 MOHM SMD / Inductor Power Shielded Wirewound 22uH 20% 100KHz 20Q-Factor Carbonyl Powder 9A 0.037Ohm DCR Automotive T/R
Datasheet
SRP1265A-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1265A
Packaging Reel package
Type Wirewound
Material - Core Carbonyl Powder
Inductance 22μH
Tolerance ±20%
Current Rating 9A
Current - Saturation 12A
Shielding Shielded
DC Resistance (DCR) 37 mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 6MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Win Source Part Number 795406-SRP1265A-220M
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1265A
Introduction Date May 06, 2014
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SRP1265A-220M CAD Model

Description

The Bourns Inc. SRP1265A-220M is a shielded wirewound inductor with an inductance of 22μH from Bourns Inc.

  • Inductance: 22μH
  • Current Rating: 9A
  • Operating Temperature: -40°C ~ 150°C
  • Package Style: nonstandard
  • Mounting: surface-mount
  • Supply and Demand Status: limited
  • Estimated EOL Date: 2030
  • AEC-Q200 Compliant: Yes
  • Halogen-Free: Yes
