Same model may have multiple batches, images only for reference.

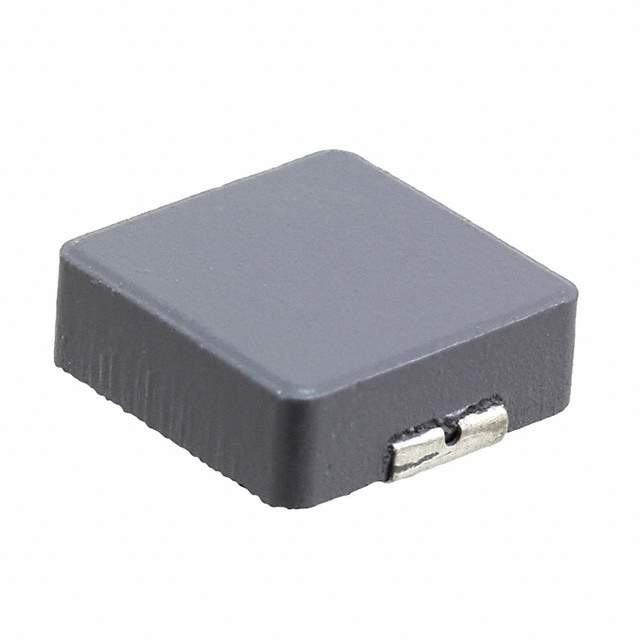

SRP1245A-100M Real Image
Same model may have multiple batches, images only for reference.

SRP1245A-100M

Part No SRP1245A-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description Shielded Power Inductors
Datasheet
SRP1245A-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1245A
Packaging Reel - TR
Type Wirewound
Material - Core Carbonyl Powder
Inductance 10μH
Tolerance ±20%
Current Rating 9A
Current - Saturation 16A
Shielding Shielded
DC Resistance (DCR) 25.5 mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Win Source Part Number 1258799-SRP1245A-100M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive
Family Name SRP1245A
Introduction Date April 03, 2014
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian SRP1245A-100M CAD Model

Description

The SRP1245A series by Bourns Inc. is a wirewound type inductor.

  • Operating Temperature: -40°C ~ 150°C
  • Shielding: Yes
  • Inductance: 10µH
  • Current Rating: 9A
  • Mounting Style: SMD
  • Tolerance: ±20%
  • Material-Core: Carbonyl Powder
  • Frequency-Self-Resonant: 10MHz
  • Package/Case: Nonstandard
  • DC Resistance: 25.5 mOhm Max
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
  • ECCN: EAR99
  • Halogen-Free: Yes
