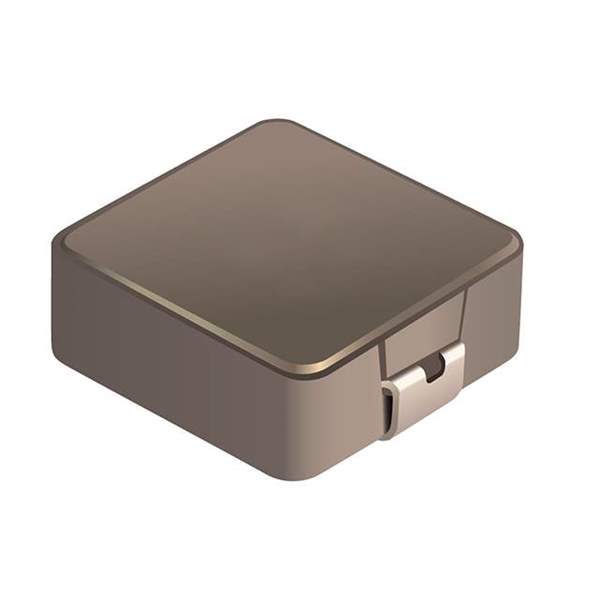

SRP1040VA-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-1R0M

Part No SRP1040VA-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 27A 3.07 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 27 A 3.07mOhm Max Nonstandard
Datasheet
SRP1040VA-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 27 A
Current - Saturation (Isat) 29A
Shielding Shielded
DC Resistance (DCR) 3.07mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 44MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 118-SRP1040VA-1R0MTR,118-SRP1040VA-1R0MDKR,118-SRP1040VA-1R0MCT
Standard Package 500
Win Source Part Number 1026734-SRP1040VA-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-1R0M CAD Model

Description

The SRP1040VA-1R0M is a drum core, wirewound inductor from Bourns Inc.

  • Shielding: has a shielding feature, which makes it ideal for applications that require noise reduction.
  • Inductance: 1 µH
  • Tolerance: ±20%
  • Q Value: 15 @ 100 kHz
  • Self-Resonant Frequency: 44 MHz
  • DC Resistance: 3.07 mOhm max.
  • AEC-Q200: rated AEC-Q200
  • Packaging: tape and reel
  • Height: 0.157" (4.00 mm)
  • Current Rating: 27 A
  • Saturation Current: 29 A
  • Applications: suitable for use in a wide range of applications, including automotive, telecommunications, and industrial.
