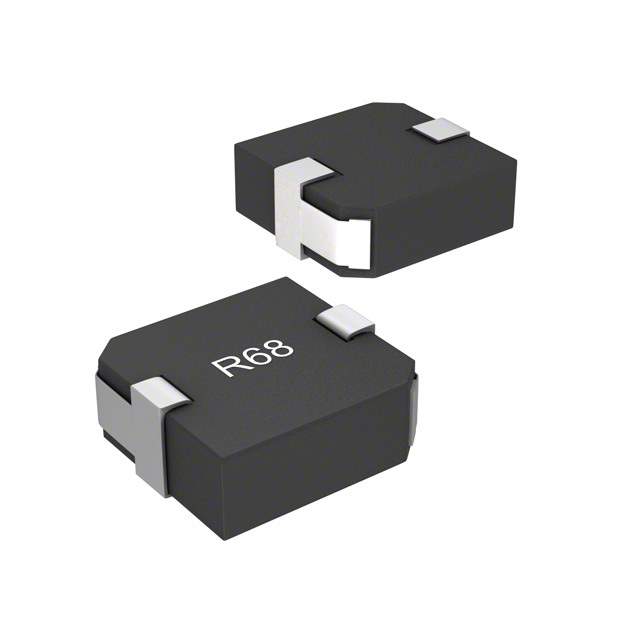

SRP1040-R68M Real Image
Same model may have multiple batches, images only for reference.

SRP1040-R68M

Part No SRP1040-R68M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description SRP1040 Series - Shielded Power Inductors
Datasheet
SRP1040-R68M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1040
Packaging Reel - TR
Material - Core Iron
Inductance 680nH
Tolerance ±20%
Current Rating 23A
Current - Saturation 32A
Shielding Shielded
DC Resistance (DCR) 2.4 mOhm Max
Operating Temperature Range -55°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Maximum) 0.165" (4.20mm)
Win Source Part Number 1258790-SRP1040-R68M
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1040
Introduction Date May 09, 2006
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2019
Ultra Librarian 3D Model Ultra Librarian SRP1040-R68M CAD Model

Description

The Bourns Inc. SRP1040 Shielded Inductor is a high-performance inductor designed for use in a variety of electronic devices.

  • Inductance: 680nH
  • Current Rating: Up to 23A
  • Ideal for: applications where high performance is required.
  • Core: Iron core
  • Shielded: to reduce interference
  • Package: Nonstandard
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 150°C
  • DC Resistance: Up to 2.4 mOhm
  • Series: SRP1040 series
  • Package: Reel
