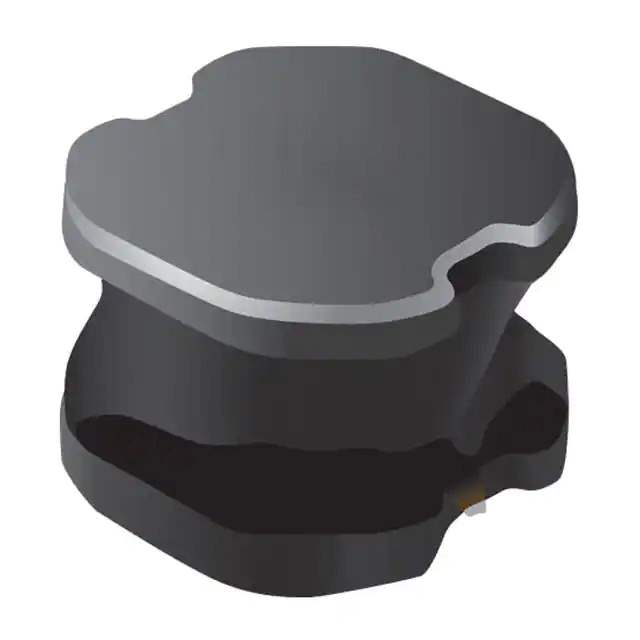

SRN6045-3R3Y Real Image
Same model may have multiple batches, images only for reference.

SRN6045-3R3Y

Part No SRN6045-3R3Y
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 3.3UH 3.2A 30.2MOHM SM
Datasheet
SRN6045-3R3Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series SRN6045
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 3.2 A
Current - Saturation (Isat) 5A
Shielding Semi-Shielded
DC Resistance (DCR) 30.2mOhm Max
Q @ Freq 15 @ 7.96MHz
Frequency - Self Resonant 27MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max) 0.177" (4.50mm)
Base Product Number SRN6045
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 851375-SRN6045-3R3Y
Ultra Librarian 3D Model Ultra Librarian SRN6045-3R3Y CAD Model

Description

The SRN6045-3R3Y is a drum core, wirewound inductor from Bourns Inc.

  • Type: Fixed Inductor
  • Design: Semi-Shielded
  • Application: Surface Mount
  • Size: 0.236" L x 0.236" W (6.00mm x 6.00mm)
  • Height: 0.177" (4.50mm)
  • Inductance: 3.3 µH
  • Tolerance: ±30%
  • DCR: 30.2mOhm Max
  • Current Rating: 3.2 A
  • Temperature Range: -40°C to 125°C
  • Core Material: Ferrite
  • Packaging: Tape and Reel
  • Standard Package: 1,000 pcs
  • Product Status: Active
  • Series: SRN6045
