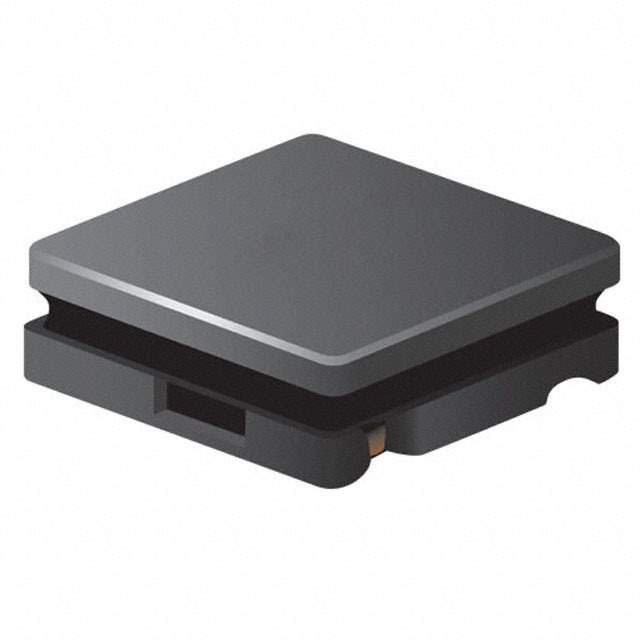

SRN3010-6R8M

Name: SRN3010-6R8M
Brand: Bourns Inc.
SKU: 676085
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRN3010-6R8M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	Semi-shielded Power Inductors \| FIXED IND 6.8UH 1.3A 312 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	6.8μH
Tolerance	±20%
Current Rating (Amps)	1.3A
Current - Saturation	700mA
Shielding	Semi-Shielded
DC Resistance (DCR)	312mOhm Max
Q at Freq	7 at 7.96MHz
Frequency - Self Resonant	50MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Maximum)	0.039" (1.00mm)
Family Part Number	SRN3010
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1258773-SRN3010-6R8M
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SRN3010-6R8M CAD Model

Alternative Products

Description

The SRN3010-6R8M is a semi-shielded, wirewound inductor with an inductance of 6.8μH and a tolerance of ±20%.

Manufacturer: Bourns Inc.
Series: SRN3010 series.
Mounting: SMD method.
Height: 0.039" (1.00mm).
DC Resistance (DCR): 312mOhm max.
Current Rating: 1.3A.
Frequency: Self-resonant @ 50MHz.
Core Material: Ferrite.
Temperature Range: -40°C to 125°C.
REACH: Unaffected by REACH.
ECCN: EAR99.
Supply and Demand Status: Balanced.
