Same model may have multiple batches, images only for reference.

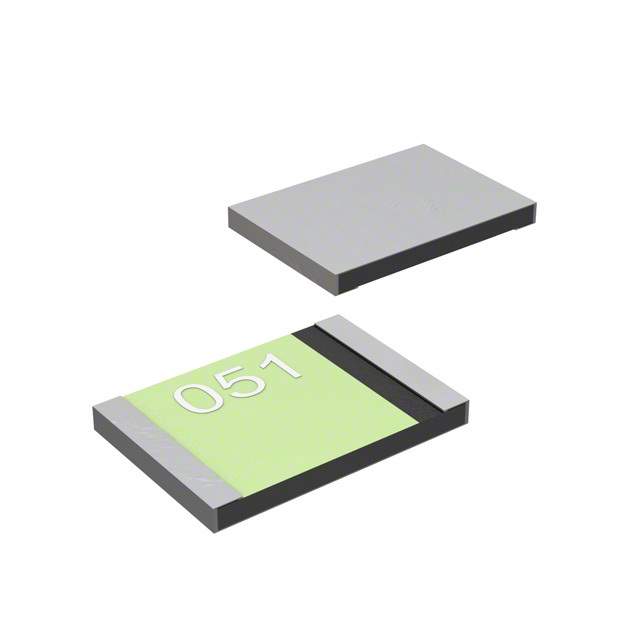

SMD125-02 Real Image
Same model may have multiple batches, images only for reference.

SMD125-02

Part No SMD125-02
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.25A HOLD SMD
Datasheet
SMD125-02 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.25A
Current - Trip (It) 2.5A
Time to Trip 400ms
Resistance - Initial (Ri) (Min) 35 mOhm
Resistance - Post Trip (R1) (Max) 140 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.015" W (4.55mm x 0.39mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 211823-SMD125-02
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SMD125-02 CAD Model

Description

The Bourns Inc. SMD125-02 is a reliable polymeric circuit protection component designed for electronic applications.

  • Manufacturer: Bourns Inc.
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Approvals: CSA, TUV, and UR approved
  • Temperature Range: -40°C to 85°C
