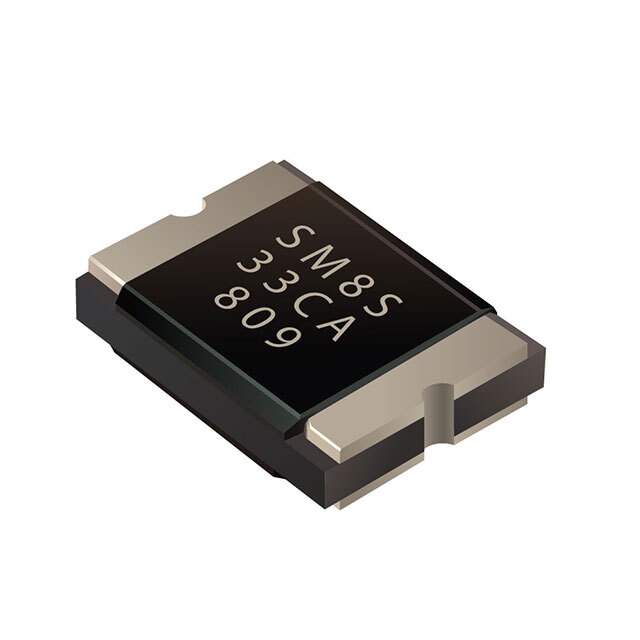

SM8SF28CA-Q Real Image
Same model may have multiple batches, images only for reference.

SM8SF28CA-Q

Part No SM8SF28CA-Q
Manufacturer Bourns Inc.
Catalog TVS - Diodes
Description TVS DIODE 28VWM 45.4VC 2DFN / 45.4V Clamp 154A Ipp Tvs Diode Surface Mount 2-DFN (8.1x10.5)
Datasheet
SM8SF28CA-Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Bourns Inc.
Series Automotive, AEC-Q101, SM8SF-Q
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 28V
Voltage - Breakdown (Min) 31.1V
Voltage - Clamping (Max) @ Ipp 45.4V
Current - Peak Pulse (10/1000µs) 154A
Power - Peak Pulse 7000W (7kW)
Power Line Protection No
Applications Automotive
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Package / Case 2-LDFN
Supplier Device Package 2-DFN (8.1x10.5)
Base Product Number SM8SF
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names SM8SF28CA-QDKR,SM8SF28CA-QCT,SM8SF28CA-QTR
Standard Package 750
Win Source Part Number 996576-SM8SF28CA-Q
Ultra Librarian 3D Model Ultra Librarian SM8SF28CA-Q CAD Model

Description

The Bourns Inc. SM8SF28CA-Q is a Zener type TVS diode that is designed for use in automotive applications.

  • Series: SM8SF-Q
  • Channel: bidirectional
  • Voltage Reverse Standoff: 28V
  • Voltage Breakdown: 31.1V
  • Maximum Voltage Clamping @ Ipp: 45.4V
  • Peak Pulse Power: 7000W
  • Package: tape and reel
  • Standard Package: 750
