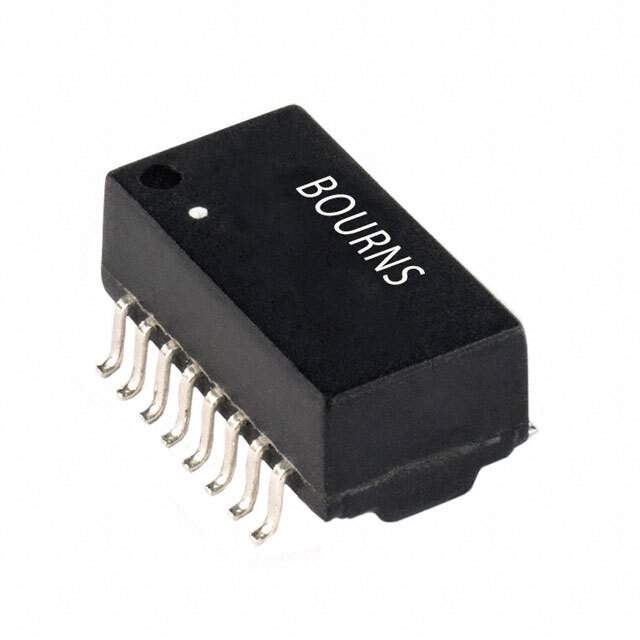

SM75057PEL Real Image
Same model may have multiple batches, images only for reference.

SM75057PEL

Part No SM75057PEL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description PULSE XFMR 1:2 TX 1:2 RX 1.2MH / 1.2mH Pulse Transformer 1:2 Transmitter, 1:2 Receiver Surface Mount
Datasheet
SM75057PEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Package Tape & Reel (TR)
Inductance 1.2mH
Mounting SMD (SMT)
Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.222" (5.65mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SM750
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 600
Win Source Part Number 1221503-SM75057PEL
Ultra Librarian 3D Model Ultra Librarian SM75057PEL CAD Model

Description

The SM75057PEL is a pulse transformer from Bourns Inc.

  • GPTDescription: It has a tape and reel (TR) package and is rated for -40°C ~ 85°C temperature range for operating.
  • GPTDescription: The inductance of this component is 1.2mH, and the maximum height is 0.222" (5.65mm).
  • GPTDescription: The dimension of this component is 0.504" L x 0.272" W (12.80mm x 6.90mm).
