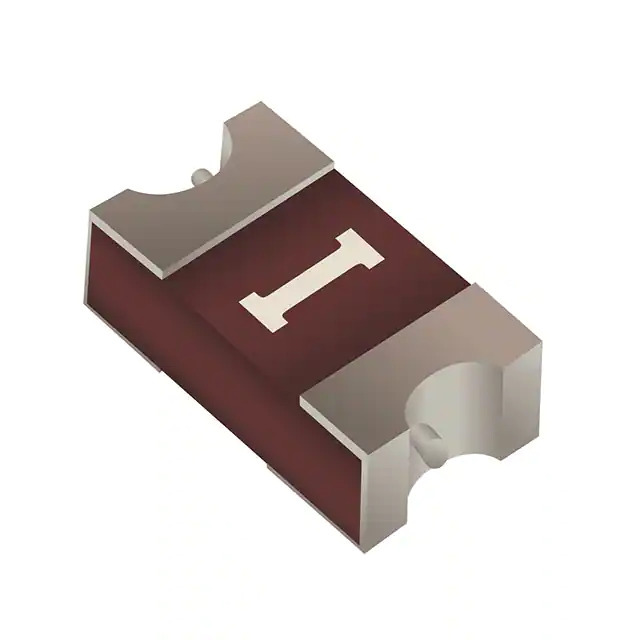

SF-1206S200W-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

SF-1206S200W-2

Part No SF-1206S200W-2
Manufacturer Bourns Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 2A 65VDC 1206 / 2 A AC 65 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric), Concave
Datasheet
SF-1206S200W-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Bourns Inc.
Series SinglFuse™ SF-1206SxxxW
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - DC 65 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric), Concave
Breaking Capacity @ Rated Voltage 50A
Melting I²t 0.88
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
DC Cold Resistance 0.032 Ohms
Base Product Number SF-1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361296-SF-1206S200W-2
Ultra Librarian 3D Model Ultra Librarian SF-1206S200W-2 CAD Model

Description

The SinglFuse™ SF-1206SxxxW is a surface mount circuit protection fuse manufactured by Bourns Inc.

  • Current Rating: 2A
  • Voltage Rating - AC: N/A
  • Voltage Rating - DC: 65V DC
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 50A
  • Package / Case: 1206 (3216 Metric), Concave
  • Size / Dimension: 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm)
  • Approval Agency: UL
  • DC Cold Resistance: 0.032 Ohms
