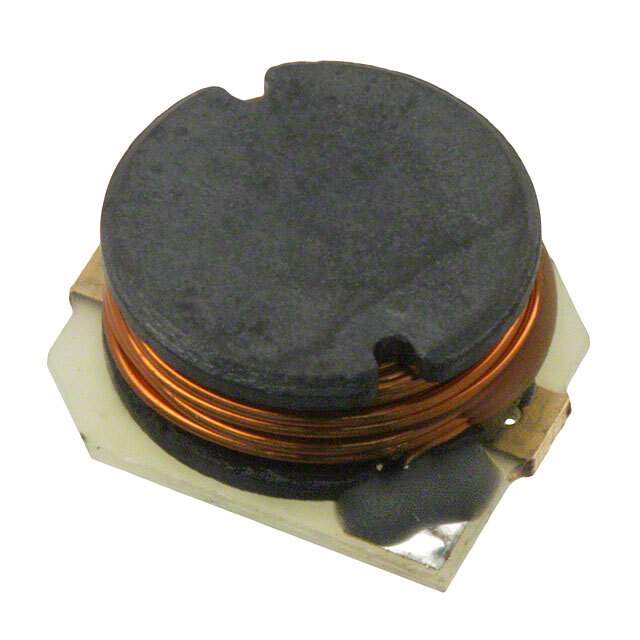

SDR1105-151KL Real Image
Same model may have multiple batches, images only for reference.

SDR1105-151KL

Part No SDR1105-151KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 150UH 1.2A 500 MOHM / SMD Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 150μH
Tolerance ±10%
Current Rating (Amps) 1.2A
Current - Saturation 2.3A
Shielding Unshielded
DC Resistance (DCR) 500mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.437" L x 0.394" W (11.10mm x 10.00mm)
Height - Seated (Maximum) 0.197" (5.00mm)
Part Number Series SDR1105
Manufacturer Pack Quantity 800
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813169-SDR1105-151KL
Ultra Librarian 3D Model Ultra Librarian SDR1105-151KL CAD Model

Description

The SDR1105-151KL is a wirewound inductor from Bourns Inc.

  • Inductance: 150μH
  • Saturation Current: 2.3A
  • DCR: 500mΩ max
  • Tolerance: ±10%
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 0.437" L x 0.394" W (11.10mm x 10.00mm)
