Same model may have multiple batches, images only for reference.

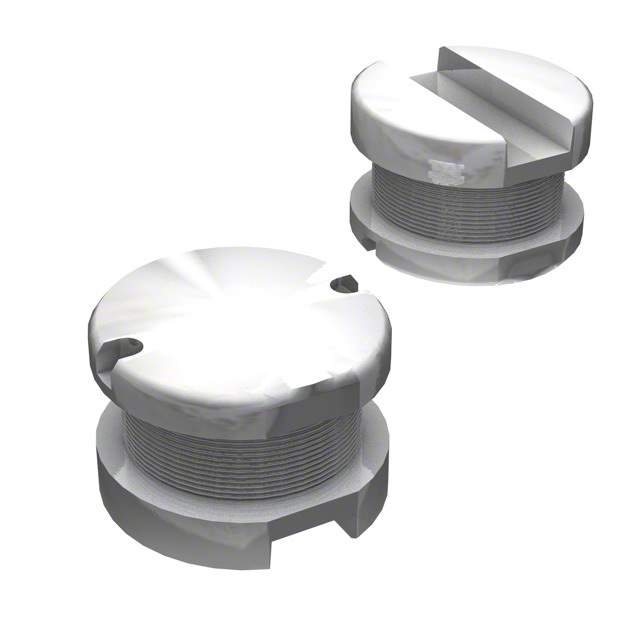

SDR0805-101KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-101KL

Part No SDR0805-101KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 100UH 720MA 450 MOHM
Datasheet
SDR0805-101KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±10%
Current Rating 720mA
Current - Saturation 1.1A
DC Resistance (DCR) 450 mOhm Max
Q @ Freq 12 @ 796kHz
Frequency - Self Resonant 7MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.209" (5.30mm)
Win Source Part Number 1095069-SDR0805-101KL
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDR0805-101KL CAD Model

Description

The Bourns Inc. SDR0805-101KL is a wirewound inductor that has a current rating of 720mA and an inductance of 100μH.

  • Type: Wirewound
  • Current Rating: 720mA
  • Inductance: 100μH
  • Q @ Freq: 12 @ 796kHz
  • Frequency - Self-Resonant: 7MHz
  • Material: Ferrite
  • Tolerance: ±10%
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • DC Resistance (DCR): 450 mOhm Max
