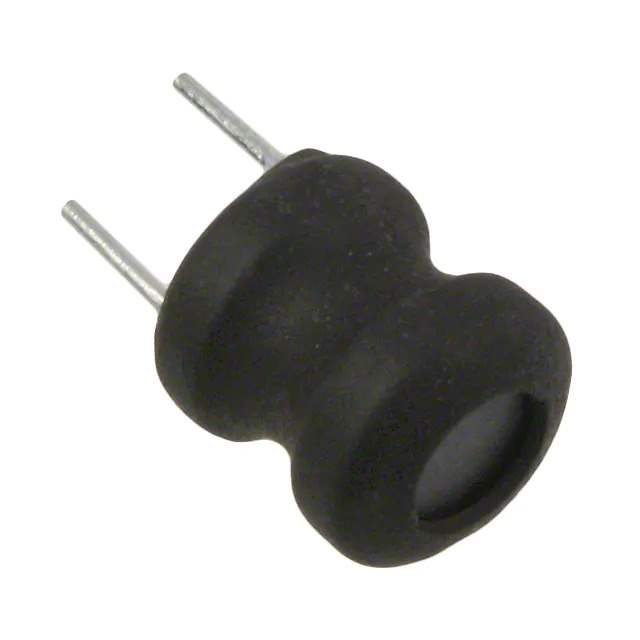

RLB0912-4R7ML Real Image
Same model may have multiple batches, images only for reference.

RLB0912-4R7ML

Part No RLB0912-4R7ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4A 22 MOHM TH
Datasheet
RLB0912-4R7ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series RLB
Package Bulk
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 5A
Shielding Unshielded
DC Resistance (DCR) 22mOhm Max
Q @ Freq 30 @ 7.96MHz
Frequency - Self Resonant 41MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.433" (11.00mm)
Base Product Number RLB0912
Standard Package 200 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 851083-RLB0912-4R7ML
Ultra Librarian 3D Model Ultra Librarian RLB0912-4R7ML CAD Model

Description

The 851083-RLB0912-4R7ML is a fixed inductor from Bourns Inc.

  • Series: RLB series
  • Inductance: 4.7 μH
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package/Case: Radial, Vertical Cylinder
  • Size/Dimension: 0.343" diameter (8.70mm)
  • Height: 0.433" (11.00mm)
  • DC Resistance (DCR): 22mOhm max
  • Current Rating: 4A
  • REACH: Compliant
  • California Prop 65: Unaffected
