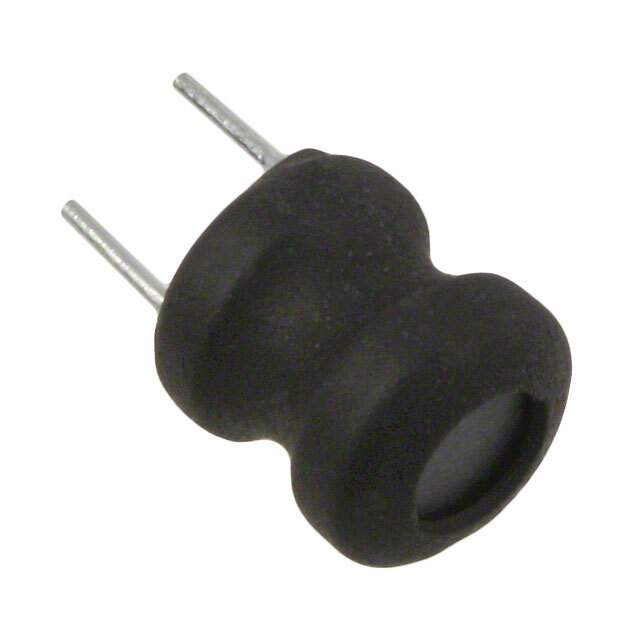

Same model may have multiple batches, images only for reference.

RLB0912-3R3ML

Name: RLB0912-3R3ML
Brand: Bourns Inc.
SKU: 793253
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RLB0912-3R3ML
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 3.6A 18 MOHM TH / Inductor Power Wirewound 3.3uH 20% 1KHz 30Q-Factor Ferrite 4.5A 0.018Ohm DCR RDL Bag
Datasheet	RLB0912-3R3ML Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Bourns Inc.
Series	RLB
Packaging	Bulk
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3μH
Tolerance	±20%
Current Rating	3.6A
Shielding	Unshielded
DC Resistance (DCR)	18 mOhm Max
Q @ Freq	30 @ 7.96MHz
Frequency - Self Resonant	50MHz
Operating Temperature Range	-40°C ~ 105°C
Test Frequency	1kHz
Mounting Style	Through Hole
Package	Radial
Dimension	0.343" Dia (8.70mm)
Height - Seated (Maximum)	0.433" (11.00mm)
Win Source Part Number	793253-RLB0912-3R3ML
Popularity	Medium
Supply and Demand Status	Limited
Family Name	RLB
Introduction Date	October 23, 2001
ECCN	EAR99
Country of Origin	China, Taiwan
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian RLB0912-3R3ML CAD Model

Alternative Products

Description

The RLB0912-3R3ML from Bourns Inc. is a wirewound inductor.

Inductance: 3.3μH
Tolerance: ±20%
Package: Radial
Mounting Style: Through hole
Core Material: Ferrite
DC Resistance: 18mOhm Max
Current Rating: 3.6A
Operating Temperature: -40°C to 105°C
Diameter: 0.343" (8.70mm)
Height: 0.433" (11.00mm) - seated (maximum)
Introduction Date: October 23, 2001
MSL Level: Not Applicable
Test Frequency: 1kHz
REACH Compliance: Yes
HTSUS Code: 8504.50.4000
