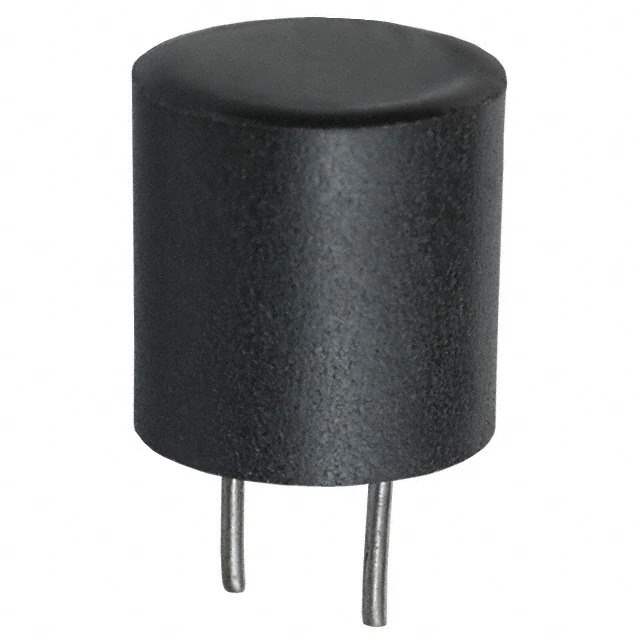

RL181S-272J-RC Real Image
Same model may have multiple batches, images only for reference.

RL181S-272J-RC

Part No RL181S-272J-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.7MH 55MA 5.8 OHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series RL181S
Package Tube
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 mH
Tolerance ±5%
Current Rating (Amps) 55 mA
Shielding Shielded
DC Resistance (DCR) 5.8Ohm Max
Q @ Freq 70 @ 50kHz
Frequency - Self Resonant 480kHz
Temperature Range - Operating -55°C ~ 105°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Size / Dimension 0.413" Dia (10.50mm)
Height - Seated (Max) 0.551" (14.00mm)
Base Product Number RL181S
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
California Prop 65 Warning Information
Win Source Part Number 854379-RL181S-272J-RC
Ultra Librarian 3D Model Ultra Librarian RL181S-272J-RC CAD Model

Description

The RL181S-272J-RC is a shielded drum core, wirewound inductor from Bourns Inc.

  • Inductance: 2.7 mH
  • Tolerance: ±5%
  • Size: 0.413" diameter (10.50mm)
  • Height: 0.551" (14.00mm)
  • Mounting Type: Through hole
  • Package: Radial, Vertical Cylinder
  • DC Resistance: 5.8Ohm Max
  • Current Rating: 55 mA
  • Operating Temperature Range: -55°C to 105°C
  • Series: RL181S
  • Status: Active
  • Manufacturer: Bourns Inc.
