Same model may have multiple batches, images only for reference.

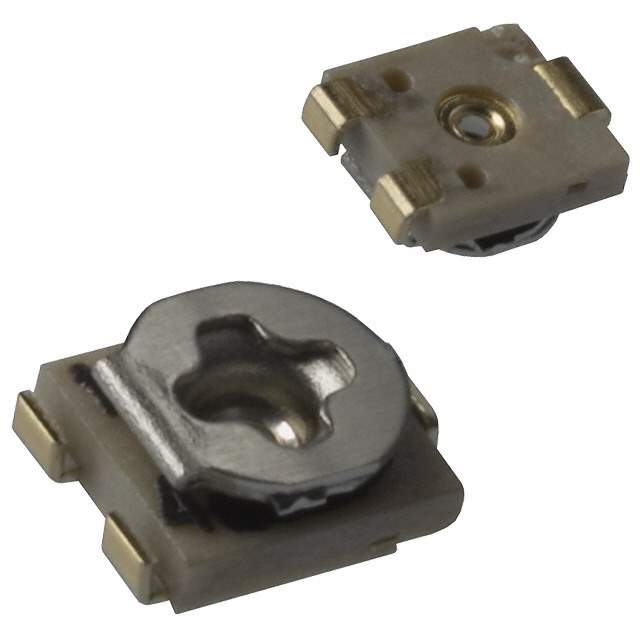

PVZ2A102A01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ2A102A01R00

Part No PVZ2A102A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 1K OHM 0.1W SMD
Datasheet
PVZ2A102A01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Cut Reel
Status Obsolete(EOL)
Resistance (Ohms) 1k
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style Gull Wing, 90° Bend
Dimension Square - 0.087" x 0.083" Face x 0.035" H (2.20mm x 2.10mm x 0.90mm)
Win Source Part Number 114985-PVZ2A102A01R00
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PVZ2A102A01R00 CAD Model

Description

The Bourns Inc. PVZ2A102A01R00 is a potentiometer designed for variable resistor applications.

  • Status: Obsolete (EOL)
  • Win Source Part Number: 114985
  • Resistance (Ohms): 1k
  • Tolerance: ±30%
  • Temperature Coefficient: ±500ppm/°C
  • Mounting: SMD (SMT)
  • Termination Style: Gull wing, 90° bend
  • Packaging: Cut reel
  • Adjustment Type: Top adjustment
  • Resistive Material: Carbon
