Same model may have multiple batches, images only for reference.

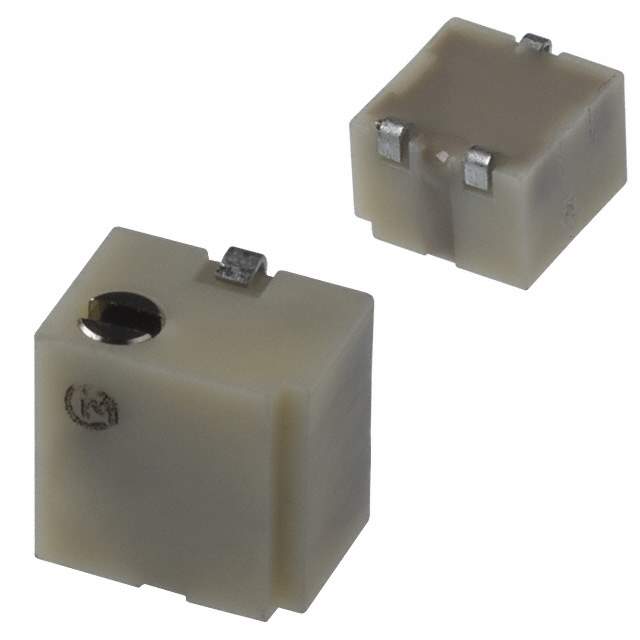

PVG5H501C03R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5H501C03R00

Part No PVG5H501C03R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500OHM 0.25W J LEAD SIDE / 500 Ohms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Side Adjustment
Datasheet
PVG5H501C03R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PVG5
Package Tape & Reel
Resistance 500 Ohms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±150ppm/°C
Number of Turns 11
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.146" Face (4.80mm x 3.70mm)
Base Product Number PVG5H
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 490-2688-6,490-2688-1,490-2688-2,PVG5H501C01R00
Standard Package 500
Win Source Part Number 1009971-PVG5H501C03R00
Ultra Librarian 3D Model Ultra Librarian PVG5H501C03R00 CAD Model

Description

The PVG5 series trimmer potentiometer is a surface mount component that has a resistance of 500 Ohms with a tolerance of ±10%.

  • Resistance: 500 Ohms
  • Tolerance: ±10%
  • Power Rating: 0.25W, 1/4W
  • Resistive Material: Cermet
  • Dimension: 0.189" x 0.146" Face (4.80mm x 3.70mm)
  • Turns: 11
  • Adjustment: Side
  • Package: Tape and Reel
  • Temperature Coefficient: ±150ppm/°C
  • Operating Temperature: -40°C ~ 125°C
  • ECCN Code: EAR99
  • HTSUS Code: 8533.40.8050
  • Manufacturer: Bourns Inc.
