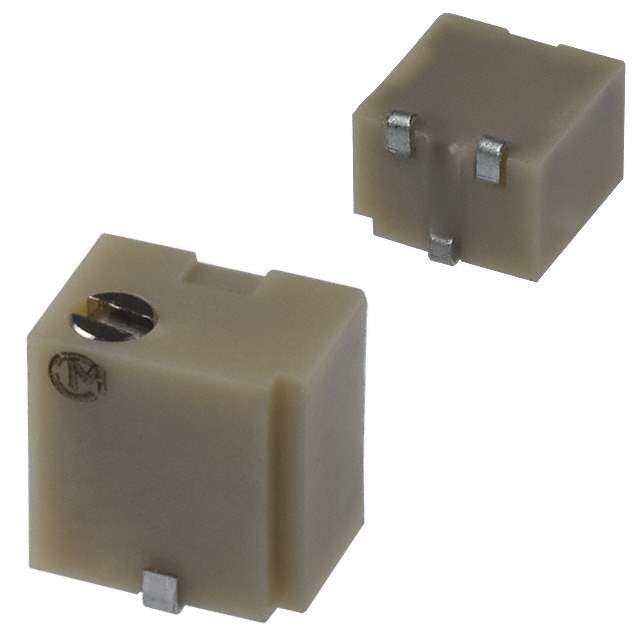

PVG5A203C03R00 Real Image
Same model may have multiple batches, images only for reference.

PVG5A203C03R00

Part No PVG5A203C03R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.25W J LEAD TOP / 20 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11.0 Turn Top Adjustment
Datasheet
PVG5A203C03R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr Bourns Inc.
Series PVG5
Package Tape & Reel
Resistance 20 kOhms
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±150ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
Base Product Number PVG5A
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.40.8050
Other Names 490-2667-2,490-2667-1,PVG5A203C01R00,490-2667-6
Standard Package 250
Win Source Part Number 1006846-PVG5A203C03R00
Ultra Librarian 3D Model Ultra Librarian PVG5A203C03R00 CAD Model

Description

The Bourns Inc. PVG5A203C03R00 is a trimmer potentiometer from the PVG5 series.

  • Series: PVG5
  • Mounting Type: SMD (SMT)
  • Termination Style: J-lead
  • Resistance: 20 kOhms
  • Power Rating: 0.25W, 1/4W
  • Tolerance: ±10%
  • Temperature Coefficient: ±150ppm/°C
  • Adjustment Type: top adjustment
  • Number of Turns: 11
  • Resistive Material: Cermet
  • Dimensions: rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm)
