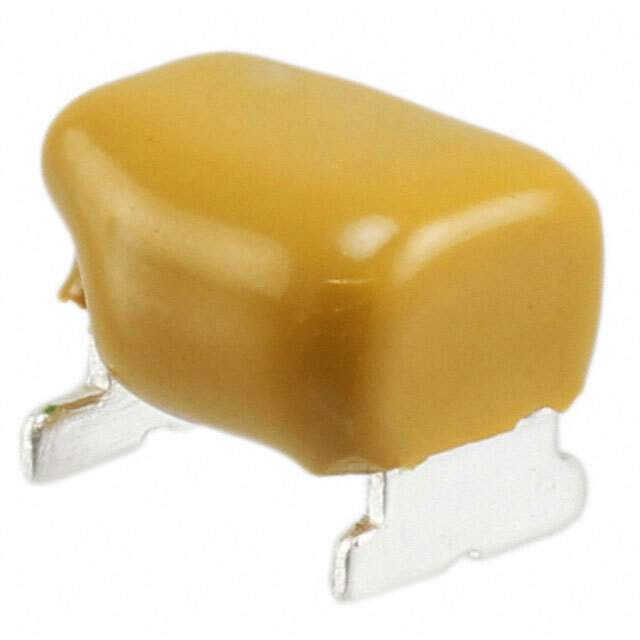

PTVS3-076C-SH

Name: PTVS3-076C-SH
Brand: Bourns Inc.
SKU: 658052
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTVS3-076C-SH
Manufacturer	Bourns Inc.
Catalog	TVS - Diodes
Description	High Current TVS Diodes
Datasheet	PTVS3-076C-SH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Bourns Inc.
Packaging	Tray
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	76V
Minimum Breakdown Voltage	85V
Maximum Clamping Voltage	140V
Current - Peak Pulse (10/1000μs)	3000A (3kA) (8/20μs)
Power Line Protection	No
Applications	General
Operating Temperature Range	-55°C ~ 125°C (TJ)
Mounting	SMD
Package	2-SMD
Manufacturer Package	SMD
Win Source Part Number	1240740-PTVS3-076C-SH
Manufacturer Homepage	www.bourns.com
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PTVS3-076C-SH
Introduction Date	June 10, 2014
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian PTVS3-076C-SH CAD Model

Alternative Products

Description

The Bourns Inc. PTVS3-076C-SH is a bidirectional Zener type circuit protection device that is designed to protect electronic circuits from overvoltage transients.

Breakdown Voltage (Min): 85V
Voltage-Reverse Standoff: 76V
Peak Pulse Current: 3000A (3kA) (8/20μs)
Package: 2-SMD
Operating Temperature: -55°C to 125°C (TJ)
Applications: General
