Same model may have multiple batches, images only for reference.

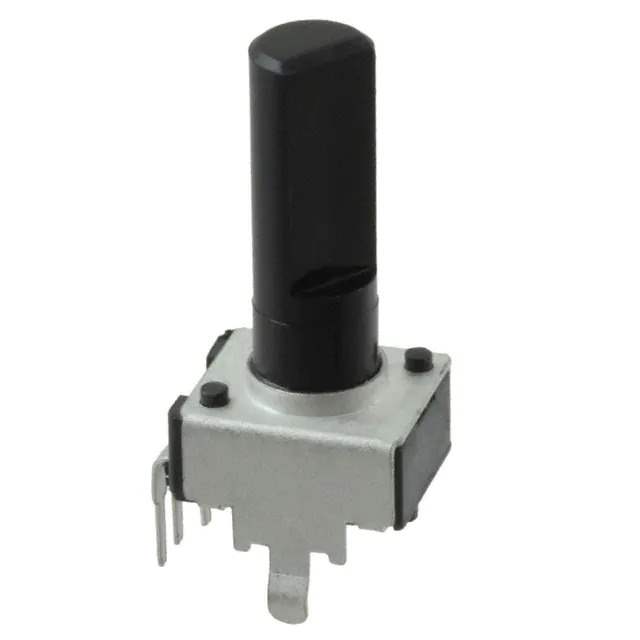

PTV09A-4025F-B103 Real Image
Same model may have multiple batches, images only for reference.

PTV09A-4025F-B103

Part No PTV09A-4025F-B103
Manufacturer Bourns Inc.
Catalog Rotary Potentiometers, Rheostats
Description POT 10K OHM 1/20W CARBON LINEAR
Datasheet
PTV09A-4025F-B103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Rotary Potentiometers, Rheostats
Mfr Bourns Inc.
Series Pro Audio PTV09
Package Tray
Product Status Active
Resistance (Ohms) 10k
Tolerance ±20%
Power (Watts) 0.05W, 1/20W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type Top Adjustment
Rotation 280°
Resistive Material Carbon
Termination Style PC Pins, Board Locks
Actuator Type Flatted
Actuator Length 0.984" (25.00mm)
Actuator Diameter 0.236" (6.00mm)
Mounting Type Through Hole, Snap In
Size - Body Rectangular - 0.433" x 0.382" Face (11.00mm x 9.70mm)
Base Product Number PTV09A
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 658019-PTV09A-4025F-B103
Ultra Librarian 3D Model Ultra Librarian PTV09A-4025F-B103 CAD Model

Description

The 658019-PTV09A-4025F-B103 is a rotary potentiometer from Bourns Inc.

  • Category: Potentiometers, variable resistors
  • Series: Pro Audio PTV09
  • Terminals: PC pins and board locks
  • Power Rating: 0.05W
  • Resistance: 10k Ohms
  • Tolerance: ±20%
  • Taper: Linear
  • Rotation Angle: 280°
  • Package: Tray
  • Size: Rectangular size of 0.433" x 0.382" face (11.00mm x 9.70mm)
  • Material: Carbon resistive material
  • Application: Audio applications
