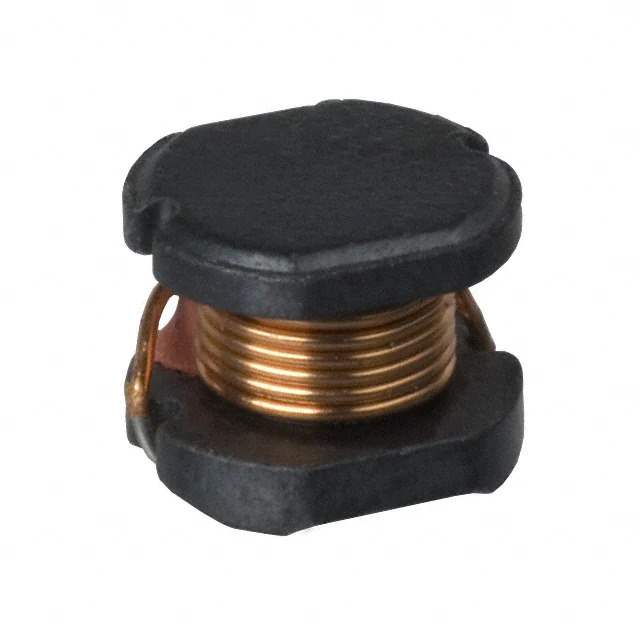

PM54-220M

Part No PM54-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.11A 180MOHM SMD
Datasheet
PM54-220M Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Bourns Inc.
Series PM54
Package Tape & Reel (TR)Cut Tape (CT)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.11 A
Shielding Unshielded
DC Resistance (DCR) 180mOhm
Frequency - Self Resonant 19MHz
Temperature Range - Operating -30°C ~ 100°C
Inductance Frequency - Test 2.52 MHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number PM54
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 740783-PM54-220M
Ultra Librarian 3D Model Ultra Librarian PM54-220M CAD Model

Description

The PM54-220M is a fixed inductor from the PM54 series manufactured by Bourns Inc..

  • Inductance: 22µH
  • DC Resistance: 180mOhm
  • Dimensions: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.189" (4.80mm)
  • Core: Drum
  • Construction: Wirewound
  • Shielding: Unshielded
  • Temperature Range: -30°C to 100°C
  • Mounting: Surface Mount
  • Package: Nonstandard
  • REACH Compliant: Yes
  • Status: Obsolete
