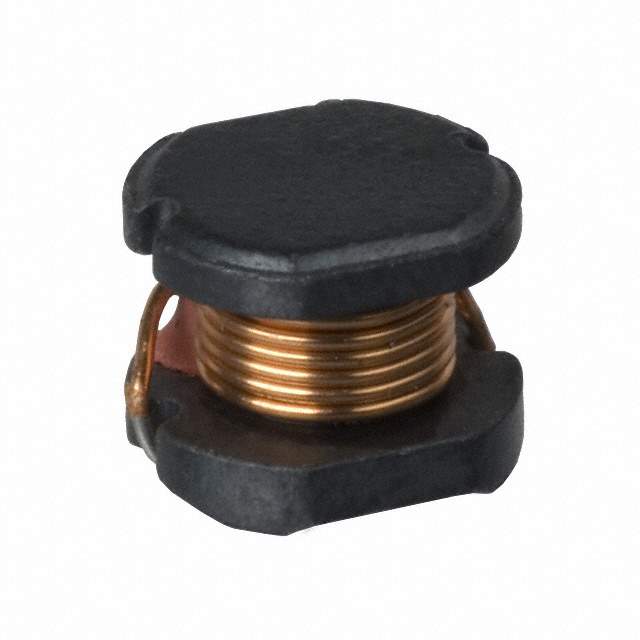

PM54-100M-RC Real Image
Same model may have multiple batches, images only for reference.

PM54-100M-RC

Part No PM54-100M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.45A 100 MOHM
Datasheet
PM54-100M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 1.45A
Current - Saturation 2A
DC Resistance (DCR) 100 mOhm
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 23MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.189" (4.80mm)
Win Source Part Number 114094-PM54-100M-RC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PM54-100M-RC CAD Model

Description

The Bourns Inc. 114094-PM54-100M-RC is a medium popularity electronic component that is a wirewound type inductor.

  • Inductance: 10 µH
  • Current Rating: 1.45A
  • The component has a ferrite core and a Q @ Freq: 30 @ 2.52MHz.
  • DC Resistance: 100 mOhm
  • Current Saturation: 2A.
