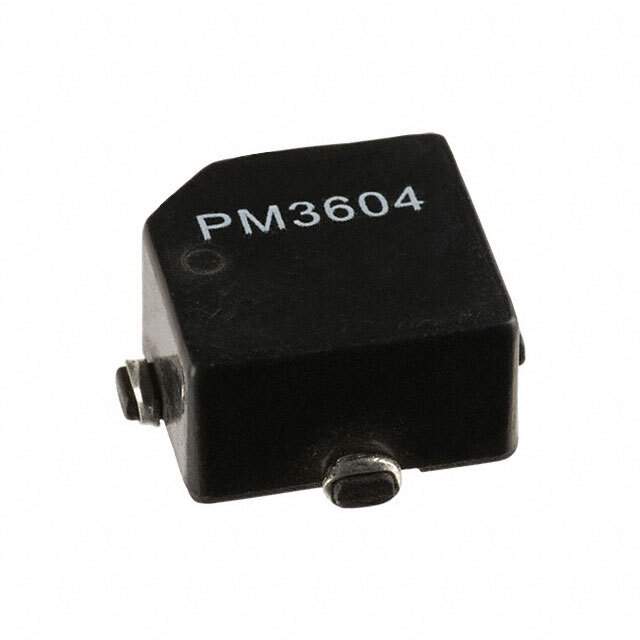

PM3604-20-RC Real Image
Same model may have multiple batches, images only for reference.

PM3604-20-RC

Part No PM3604-20-RC
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 20UH SMD / Unshielded 2 Coil Inductor Array 80 µH Inductance - Connected in Series 20 µH Inductance - Connected in Parallel 49mOhm Max DC Resistance (DCR) - Parallel 2.02 A Nonstandard
Datasheet
PM3604-20-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series PM3600
Package Tape & Reel (TR),Cut Tape (CT)
Number of Coils 2
Inductance - Connected In Parallel 20 µH
Inductance - Connected In Series 80 µH
Tolerance ±20%
Current Rating - Parallel 2.02 A
Current Rating - Series 1.01 A
DC Resistance (DCR) - Parallel 49mOhm Max
DC Resistance (DCR) - Series 200mOhm Max
Shielding Unshielded
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.550" L x 0.452" W (13.97mm x 11.48mm)
Height 0.265" (6.73mm)
Base Product Number PM3604
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names PM360420RC,M10152DKR,M10152DKR-ND,M10152CT,M10152DKRINACTIVE,M10152TR
Standard Package 400
Win Source Part Number 996085-PM3604-20-RC
Ultra Librarian 3D Model Ultra Librarian PM3604-20-RC CAD Model

Description

The Bourns Inc. PM3604-20-RC is an inductor array designed for use in electronic circuits.

  • Number of Coils: 2
  • Package Size: 0.550" L x 0.452" W (13.97mm x 11.48mm)
  • Inductance (Series): 80 µH
  • Inductance (Parallel): 20 µH
  • Current Rating (Parallel): 2.02 A
  • Current Rating (Series): 1.01 A
  • DC Resistance (Parallel): 49mOhm Max
  • DC Resistance (Series): 200mOhm Max
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 125°C
  • Mounting: SMD (SMT)
  • Package/Case: Nonstandard
  • Series: PM3600
  • Standard Package: 400 units
