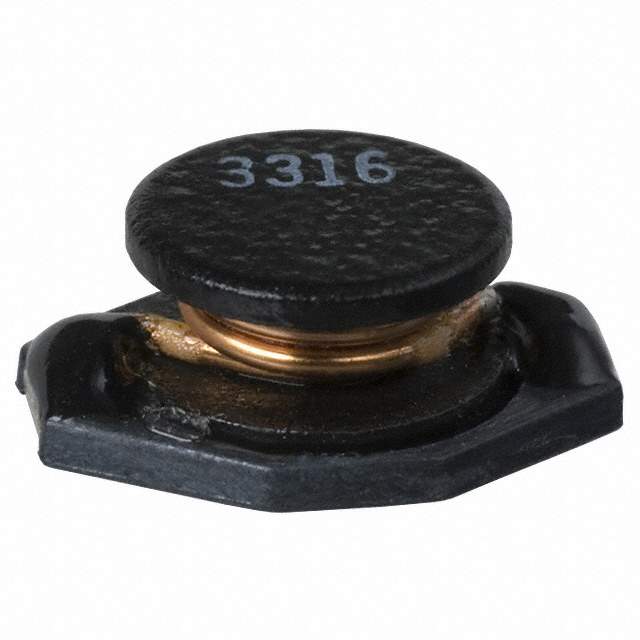

PM3316-470M-RC Real Image
Same model may have multiple batches, images only for reference.

PM3316-470M-RC

Part No PM3316-470M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 1.4A 190 MOHM SMD / 47 µH Unshielded Drum Core, Wirewound Inductor 1.4 A 190mOhm Nonstandard
Datasheet
PM3316-470M-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series PM3316
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.6A
Shielding Unshielded
DC Resistance (DCR) 190mOhm
Q @ Freq 25 @ 1MHz
Frequency - Self Resonant 12MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number PM3316
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names PM3316470MRC,M8567TR,M8567DKR,M8567CT
Standard Package 500
Win Source Part Number 1135271-PM3316-470M-RC
Ultra Librarian 3D Model Ultra Librarian PM3316-470M-RC CAD Model

Description

The Bourns Inc. PM3316-470M-RC is a high-quality fixed inductor that is designed to meet the needs of various electronic devices.

  • Inductor Type: Drum core, wirewound
  • Shielded: Shielded
  • Inductance: 47 µH
  • Q @ Freq: 25 @ 1MHz
  • Frequency - Self-Resonant: 12MHz
  • DC Resistance (DCR): 190mOhm
  • Package/Case: Nonstandard
  • Packaging: Tape & Reel
