Same model may have multiple batches, images only for reference.

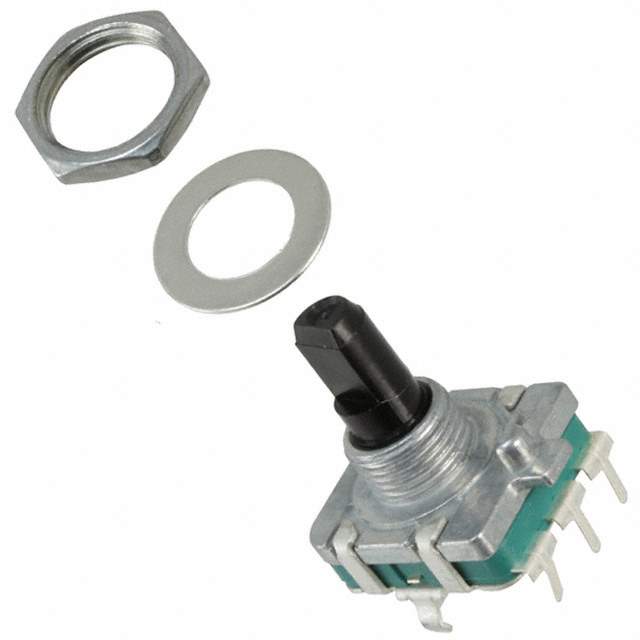

PEC16-4115F-S0012 Real Image
Same model may have multiple batches, images only for reference.

PEC16-4115F-S0012

Part No PEC16-4115F-S0012
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 12PPR  /  Rotary Encoder Mechanical 12 Quadrature (Incremental) Vertical
Datasheet
PEC16-4115F-S0012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Bourns Inc.
Series PEC16
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 100K
Base Product Number PEC16
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Standard Package 50
Win Source Part Number 1221926-PEC16-4115F-S0012
Ultra Librarian 3D Model Ultra Librarian PEC16-4115F-S0012 CAD Model

Description

This electronic component is an encoder sensor with a Win Source Part Number of 1221926-PEC16-4115F-S0012. It belongs to the PEC16 series and has a PC Pin termination style, with a tray package orientation. The standard package for this component is 50.

  • Manufacturer: Bourns Inc.
  • Product Name: PEC16
  • Output Type: quadrature (incremental)
  • Actuator Type: 6mm Dia Flatted End
  • Switch: built-in
  • Type: mechanical
  • Pulses per Revolution: 12
  • Detent: has a detent
  • Rotational Life (cycles min): 100K
  • Mounting: panel or PCB through hole
  • ECCN: EAR99
  • REACH: unaffected
  • HTSUS: 8543.70.4500
  • Base Product Number: PEC16
