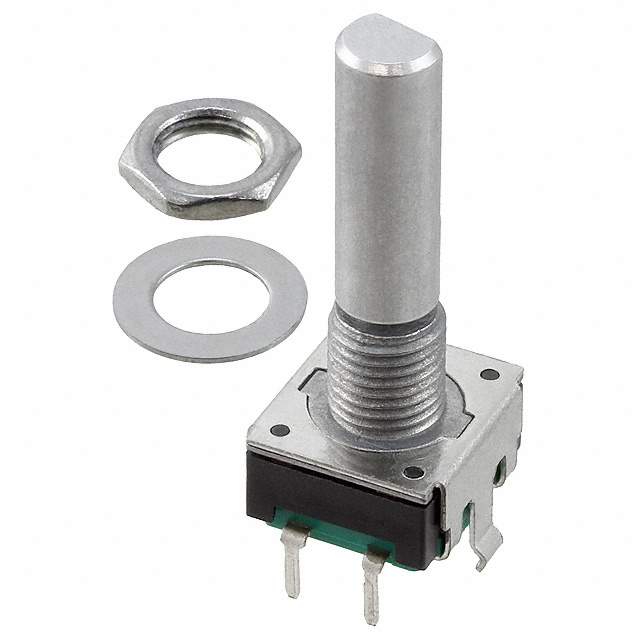

PEC11R-4225F-S0024 Real Image
Same model may have multiple batches, images only for reference.

PEC11R-4225F-S0024

Part No PEC11R-4225F-S0024
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 24PPR / Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
Datasheet
PEC11R-4225F-S0024 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Encoders
Mfr Bourns Inc.
Series PEC11R
Package Tray
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 24
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Base Product Number PEC11R
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Standard Package 75
Win Source Part Number 1002351-PEC11R-4225F-S0024
Ultra Librarian 3D Model Ultra Librarian PEC11R-4225F-S0024 CAD Model

Description

The PEC11R series encoder from Bourns Inc. is a mechanical type encoder with 24 pulses per revolution and a detent mechanism.

  • Actuator Type: 6mm dia flatted end with a built-in switch
  • Mounting: Panel and PCB through-hole
  • Rotational Life: 30K cycles min
  • Output Type: Quadrature (incremental)
  • Termination Style: PC Pin
  • Packaging: Tray
  • Orientation: Vertical
  • Category: Sensors, Transducers>Encoders
  • ECCN: EAR99
  • REACH: Not affected
  • HTSUS: 8543.70.4500
