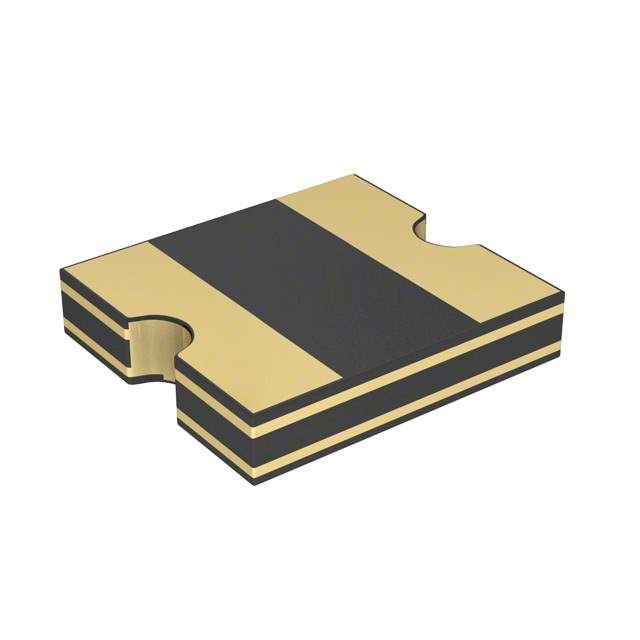

MF-SMDF050-2 Bourns Inc. MF-SMDF050-2 Real Image MF-SMDF050-2 label picture
Same model may have multiple batches, images only for reference.
MF-SMDF050-2 Bourns Inc. MF-SMDF050-2 Real Image MF-SMDF050-2 label picture
MF-SMDF050-2 Bourns Inc. MF-SMDF050-2 Real Image MF-SMDF050-2 label picture
Same model may have multiple batches, images only for reference.

MF-SMDF050-2

Part No MF-SMDF050-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE .55A 60V 2018
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 10A
Current - Hold (Ih) (Max) 550mA
Current - Trip (It) 1.2A
Time to Trip 3s
Resistance - Initial (Ri) (Min) 200 mOhm
Resistance - Post Trip (R1) (Max) 1 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.200" L x 0.180" W (5.08mm x 4.58mm)
Thickness (Max) 0.043" (1.09mm)
Approvals cURus, TUV
Win Source Part Number 003450-MF-SMDF050-2
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Communications & Networking, Automotive
Quantity per package 6k pcs
Ultra Librarian 3D Model Ultra Librarian MF-SMDF050-2 CAD Model

Description

The Bourns Inc. 003450-MF-SMDF050-2 is a polymeric circuit protection component that comes with a voltage rating of 60V and a maximum current rating of 10A.

  • Voltage Rating: 60V
  • Maximum Current Rating: 10A
  • Approvals: approved by cURus and TUV
  • Thickness: 0.043" (1.09mm)
  • Mounting Type: SMD (SMT)
  • Current Hold (Ih): 550mA
  • Current Trip (It): 1.2A
  • Time to Trip: 3s
  • Application: used in circuit protection
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.200" L x 0.180" W (5.08mm x 4.58mm)
  • Initial Resistance (Ri): 200 mOhm
  • Post-Trip Resistance (R1): 1 Ohm
  • Supply and Demand Status: sufficient
  • Application: used in communications and networking, automotive applications
  • Quantity per Package: 6k pcs
