Same model may have multiple batches, images only for reference.

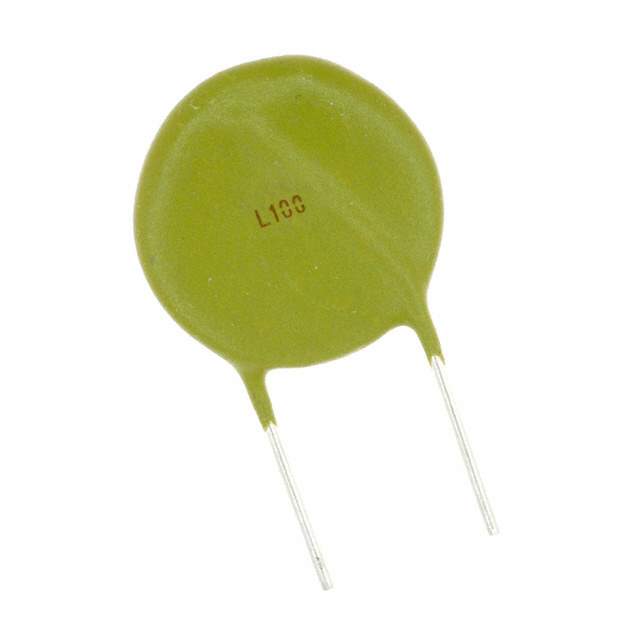

LVR100S Real Image
Same model may have multiple batches, images only for reference.

LVR100S

Part No LVR100S
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PolySwitch Resettable Devices Line-Voltage-Rated Devices | PTC RESET FUSE 240V 1A RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Type Polymeric
Voltage - Max 240V (265V Int)
Current - Max 10A
Current - Hold (Ih) (Maximum) 1A
Current - Trip (It) 2A
Time to Trip 21s
Resistance - Initial (Ri) (Minimum) 218 mOhms
Resistance - Post Trip (R1) (Maximum) 580 mOhms
Temperature Range - Operating -20°C ~ 85°C
Mounting Style Through Hole
Manufacturer Package Radial, Disc
Parts Dimension 0.736" Dia x 0.201" T (18.70mm x 5.10mm)
Height - Seated (Maximum) 0.961" (24.40mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Manufacturer Pack Quantity 250
MSL Level Not Applicable
Win Source Part Number 1209637-LVR100S
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LVR100S CAD Model

Description

The Littelfuse Inc. LVR100S is a polymeric type circuit protection component designed to protect against overcurrent conditions.

  • Type: Polymeric
  • Voltage-Maximum: 240V
  • Current-Maximum: 10A
  • Time to Trip: 21s
  • Applications: Power supplies and motor controls
  • Supply and Demand Status: Limited
