Same model may have multiple batches, images only for reference.

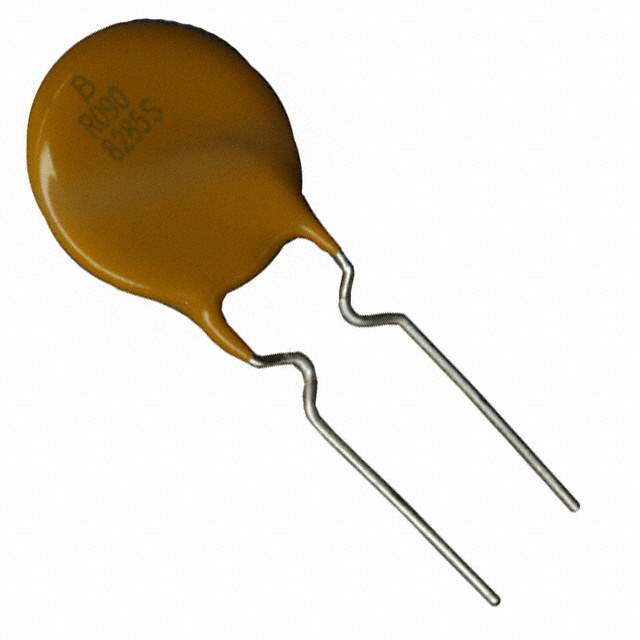

MF-R090 Real Image
Same model may have multiple batches, images only for reference.

MF-R090

Part No MF-R090
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 900mA
Current - Trip (It) 1.8A
Time to Trip 7.2s
Resistance - Initial (Ri) (Min) 140 mOhm
Resistance - Post Trip (R1) (Max) 470 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.461" L x 0.122" W (11.70mm x 3.10mm)
Height - Seated (Max) 0.657" (16.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 094683-MF-R090
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Defence, Military & Aerospace, Automotive, Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian MF-R090 CAD Model

Description

The Bourns Inc. Polymeric Fuse is a circuit protection device that is designed to protect electronic components from overcurrent and overvoltage conditions.

  • Supply and demand status: Balanced
  • Suitable for Use: Suitable for use in various applications such as defence, military and aerospace, automotive, computers, and computer peripherals
  • Voltage Rating: 60V
  • Maximum Current Rating: 40A
  • Time to Trip: 7.2s
  • Resistance: 140 mOhm
