Same model may have multiple batches, images only for reference.

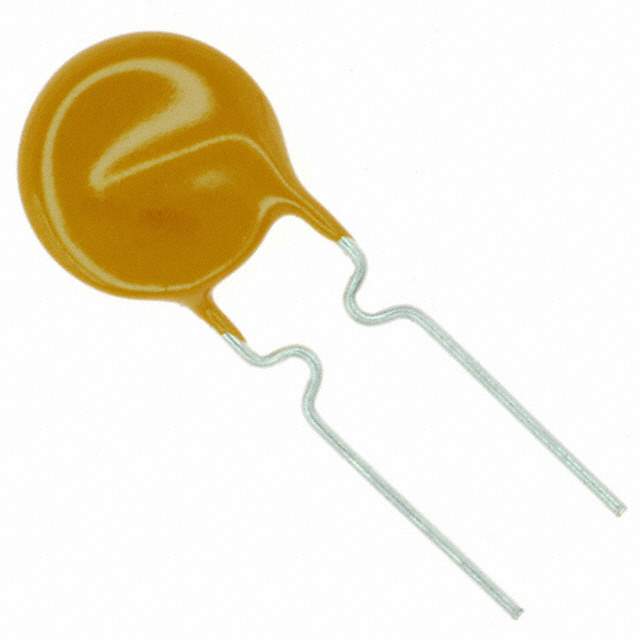

MF-R185 Real Image
Same model may have multiple batches, images only for reference.

MF-R185

Part No MF-R185
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE 1.85A HOLD
Datasheet
MF-R185 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 30V
Current - Max 40A
Current - Hold (Ih) (Max) 1.85A
Current - Trip (It) 3.7A
Time to Trip 8.7s
Resistance - Initial (Ri) (Min) 40 mOhm
Resistance - Post Trip (R1) (Max) 110 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.472" Dia x 0.118" W (12.00mm x 3.00mm)
Height - Seated (Max) 0.724" (18.40mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003420-MF-R185
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MF-R185 CAD Model

Description

The MF-R185 is a polymeric circuit protection device from Bourns Inc.

  • Voltage Rating: 30V
  • Maximum Current: 40A
  • Height: 0.724" (18.40mm)
  • Mounting: Through-hole
  • Lead Spacing: 0.201" (5.10mm)
  • Packaging: Bulk
  • Resistance: 40 mOhm (initial) and 110 mOhm (post-trip)
  • Current Hold (Ih): 1.85A
  • Current Trip (It): 3.7A
  • Time to Trip: 8.7s
  • Approvals: cURus and TUV
  • Temperature Range: -40°C to 85°C
  • RoHS Compliant: Yes
