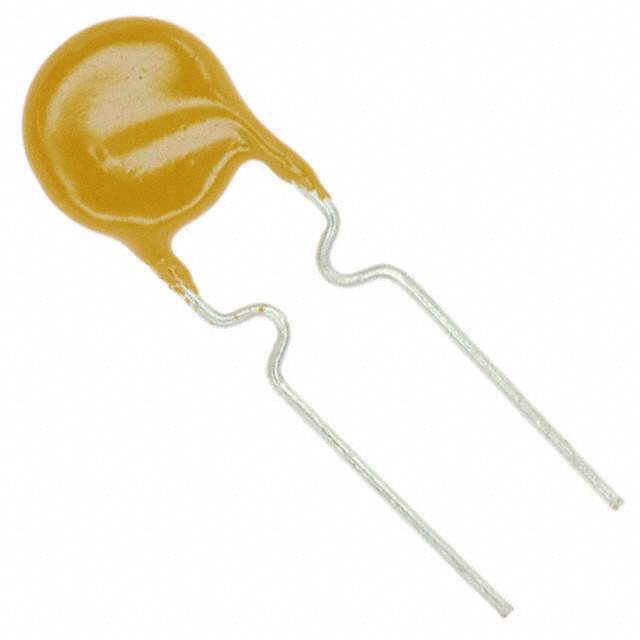

Same model may have multiple batches, images only for reference.

MF-R030-0-99

Name: MF-R030-0-99
Brand: Bourns Inc.
SKU: 804265
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MF-R030-0-99
Manufacturer	Bourns Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 300MA RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Bourns Inc.
Packaging	Bulk
Part Status	Obsolete (End Of Life)
Type	Polymeric
Voltage - Max	60V
Current - Max	40A
Current - Hold (Ih) (Maximum)	300mA
Current - Trip (It)	600mA
Time to Trip	3s
Resistance - Initial (Ri) (Min)	760 mOhms
Resistance - Post Trip (R1) (Maximum)	2.1 Ohms
Temperature Range - Operating	-40°C ~ 85°C
Mounting Style	Through Hole
Manufacturer Package	Radial, Disc
Dimension	0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height - Seated (Maximum)	0.528" (13.40mm)
Lead Spacing	0.201" (5.10mm)
Approvals	cURus, TUV
Part Number Series	MF-R030
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804265-MF-R030-0-99
Ultra Librarian 3D Model	Ultra Librarian MF-R030-0-99 CAD Model

Description

Bourns Inc. presents a Through Hole Polymeric Type Bulk Resistor.

Voltage Max: 60V
Current Max: 40A
Current Trip (It): 600mA
Time to Trip: 3s
Resistance - Initial (Ri) (Min): 760 mOhms
Current - Hold (Ih) (Maximum): 300mA
Dimension: 0.291" Dia x 0.122" T (7.40mm x 3.10mm)
Height: 0.528" (13.40mm)
Manufacturer Package: Radial, disc
Lead Spacing: 0.201" (5.10mm)
Approvals: cURus, TUV
Temperature Range: -40°C to 85°C
Resistance - Post-trip (R1) (Maximum): 2.1 Ohms
Part Number Series: MF-R030
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 500
MSL Level: 1 (Unlimited)
Resistor Matching Ratio and Resistor-ratio-drift: -
