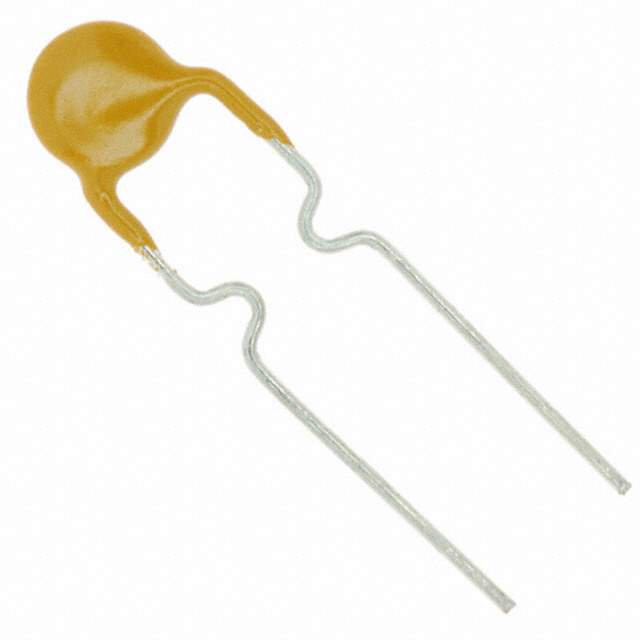

MF-R010-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R010-2

Part No MF-R010-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R010-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 100mA
Current - Trip (It) 200mA
Time to Trip 4s
Resistance - Initial (Ri) (Min) 2.5 Ohm
Resistance - Post Trip (R1) (Max) 7.5 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003406-MF-R010-2
Ultra Librarian 3D Model Ultra Librarian MF-R010-2 CAD Model

Description

The Bourns Inc. 003406-MF-R010-2 is a polymeric circuit protection component that comes with a voltage rating of 60V and a maximum current rating of 40A.

  • Approvals: cURus and TUV
  • Height: 0.500" (12.70mm) when seated
  • Mounting Type: Through-hole
  • Lead Spacing: 0.201" (5.10mm)
  • Current Hold (Ih): 100mA
  • Current Trip (It): 200mA
  • Time to Trip: 4s
  • Used in: Circuit protection
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
  • Initial Resistance (Ri): 2.5 Ohm
  • Post-Trip Resistance (R1): 7.5 Ohm
